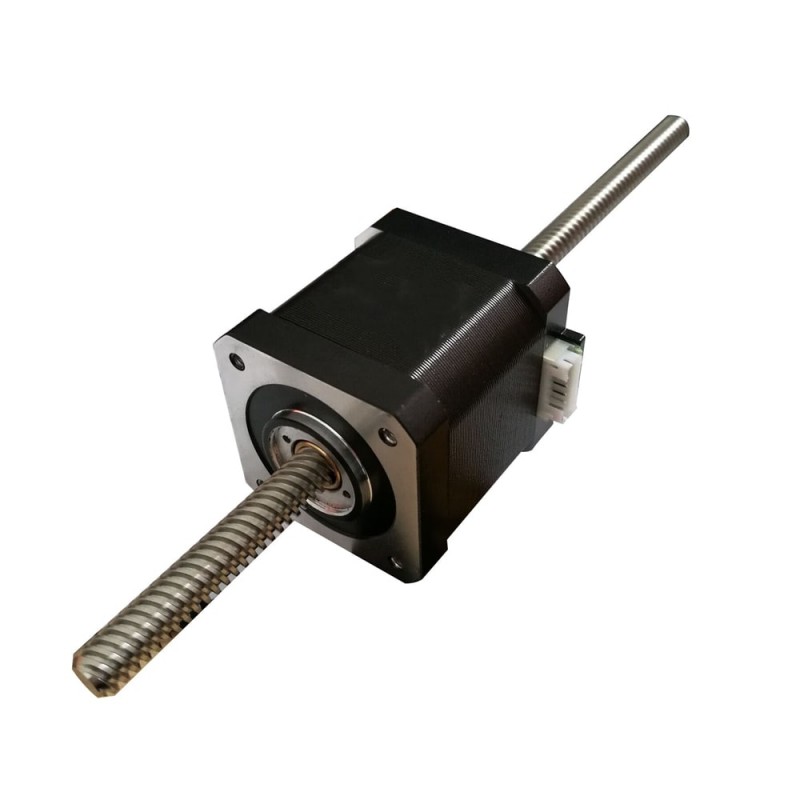

NEMA 17 Non-captive Linear Actuator Stepper Motor 40mm Stack 1.68A Lead 4mm Length 200mm
- Part Number: 42LS40-1684N-200L84
- Lead Time: In Stock
- Unit Price: $35.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 42 non-captive linear actuator with body part 40mm NEMA 17 stepper motor is integrated with a diameter Φ8mm lead screw. The lead travel is 4mm per revolution or 0.02mm per step.
Electrical Specification
- Part Number: 42LS40-1684N-200L84
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.45Nm/63.9oz.in
- Rated Current/phase: 1.68A
- Phase Resistance: 1.65ohms
- Inductance: 3.2mH
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: 42x42mm
- Body Length: 40mm
- Lead Screw Length: 200mm
- Lead Screw Diameter: Φ8mm
- Lead /Step: 0.02mm
- Lead/Revolution: 4mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.4kg
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.45 |
| Holding Torque(oz.in) | 63.9 |
| Rated Current(A) | 1.68 |
| Frame Size(mm) | 42x42 |
| Stack Length(mm) | 40 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 200 |
| Lead Screw Diameter(mm) | 8 |
| Lead Travel/Revolution(mm) | 4 |
| Lead Travel/Step(mm) | 0.02 |
