NEMA 17 Linear Actuator Stepper Motor 34mm Stack 0.4A Lead 8mm Screw Length 200mm
- Part Number: 42LS34-0404E-200G
- Lead Time: In Stock
- Unit Price: $25.00
- Sales: 96
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

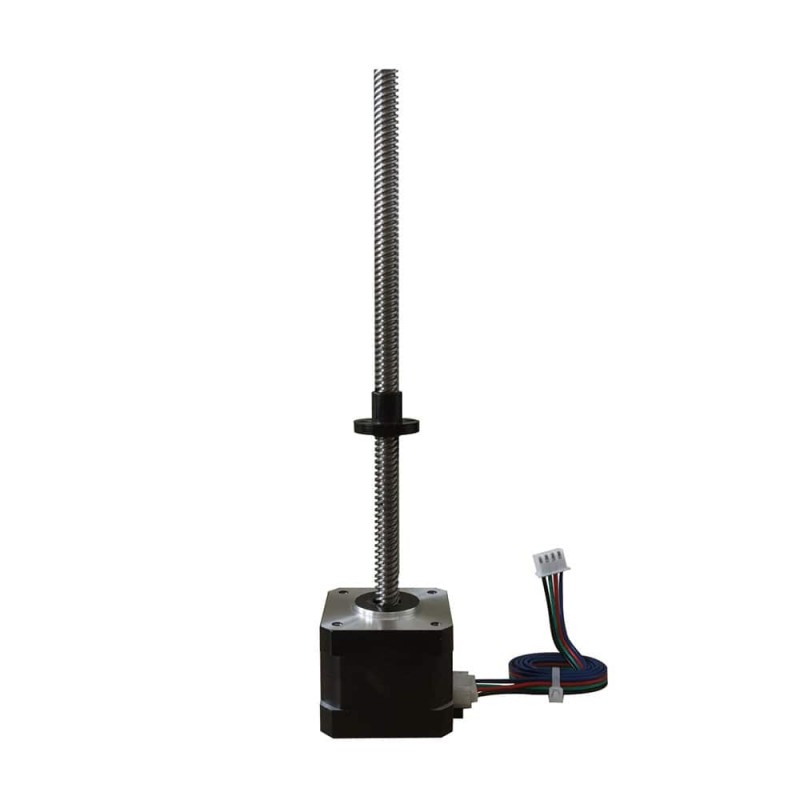

This NEMA 17 external linear actuator stepper motor body part 34mm is integrated with a diameter Φ8mm lead screw & a POM screw nut. The lead travel is 8mm per revolution or 0.04mm per step.
Electrical Specification
- Part Number: 42LS34-0404E-200G
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.28Nm/39.76oz.in
- Rated Current/phase: 0.4A
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: 42x42mm
- Body Length: 34mm
- Lead Screw Length: 200mm
- Lead Screw Diameter: Φ8mm
- Lead /Step: 0.04mm
- Lead/Revolution: 8mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.3kg
Contact Us
| Motor Specification | |
| Motor Type | External |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.28 |
| Holding Torque(oz.in) | 39.76 |
| Rated Current(A) | 0.4 |
| Frame Size(mm) | 42x42 |
| Stack Length(mm) | 34 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 200 |
| Lead Screw Diameter(mm) | 8 |
| Lead Travel/Revolution(mm) | 8 |
| Lead Travel/Step(mm) | 0.04 |
