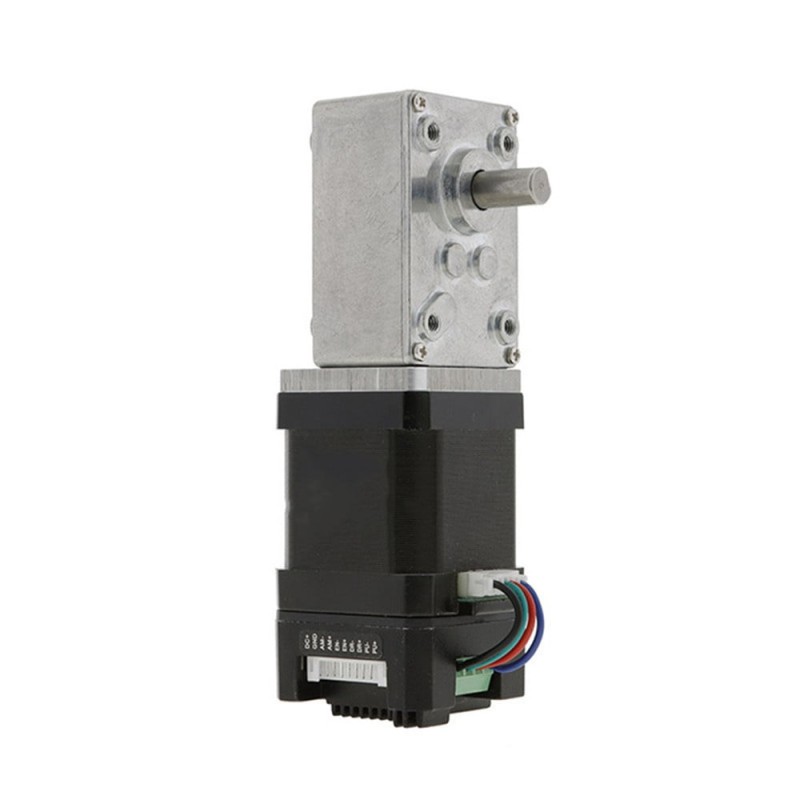

NEMA 17 Integrated Geared Stepper Motor L=48mm with Reduction 50:1 Worm Gearbox &12-24V Drive
Electrical Specification
- Part Number: 42HS48-YO-WG50
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.59Nm/83.78oz.in
- Rated Current/phase: 2.0A
- Frame Size: 42x42mm
- Motor Length: 48mm
Drive Specification
- Output Current: 1.0-1.5A
- Input Voltage: 12-40VDC
- Micro-step Resolutions: 200-25,600
- I/O Speed Range: 30-720RPM
- Driver Length: 23mm
Gearbox Specification
- Gearbox Type: Worm
- Gear Ratio: 50:1
- Efficiency: 70%
- Backlash at No-load: <=3.0deg
- Gearbox Length: 63mm
- Shaft Diameter: Φ8mm
- Shaft Length: 15mm
- D-cut Length: 13mm
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.59 |
| Holding Torque(oz.in) | 83.78 |
| Drive Integrated | Yes |
| Input Voltage(V) | 12-24 |
| Encoder Feedback | No |
| Control Mode | Pulse |
| Physical Specification | |
| Frame Size(mm) | 42x42 |
| Overall Length(mm) | 134 |
| Gearbox Specification | |
| Gearbox Type | Worm |
| Gear Ratio | 50:1 |
| Efficiency | 70% |
| Backlash at No-load | 3.0deg |
| Gearbox Length(mm) | 63 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 15 |
