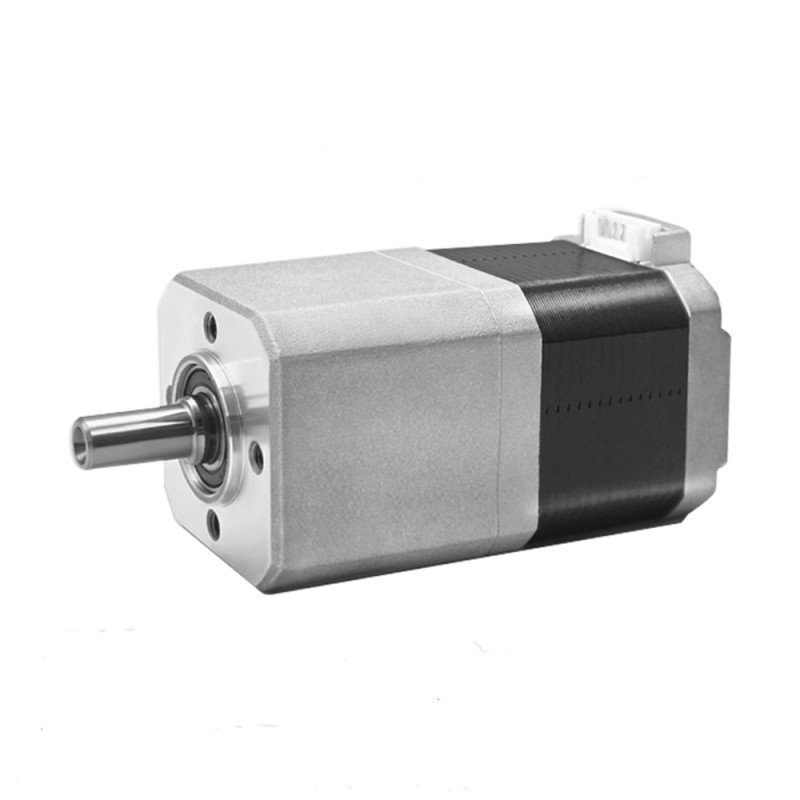

NEMA 17 Geared Stepper Motor 1.5A 3.5Nm/497oz.in Reduction Ratio 10:1 High Precision 5arcmin Planetary Gearbox
- Part Number: S43D320MC010-01
- Lead Time: In Stock
- Unit Price: $89.00
- Sales: 7
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 17 geared reduction stepper motor has a overall length 72.3mm and 1.5A rated current and is integrated with a high precision & low backlash maximum 5arcmin planetary gearbox of 10:1 gear ratio, which generates a strong holding torque otuput upto 3.5Nm/497oz.in & a very low speed 0-100rpm. It's an ideal solution to the applications that require limited space but low speed and high torque.
Specification
- Part Number: S43D320MC010-01
- Step Angle: 0.18deg
- Bipolar/Unipolar: Bipolar
- Rated Current/phase: 1.5A
- Frame Size: 42x42mm
- Overall Length: 72.3m
- Holding Torque: 3.5Nm/497oz.in
- Gearbox Type: Planetary
- Gear Ratio: 10:1
- Efficiency: 98%
- Backlash at No-load: <=5arcmin
- Output Shaft Diameter: Φ8mm
- Output Shaft Length: 20mm
- D-cut Length: 17mm
Contact Us
L=72.3mm
