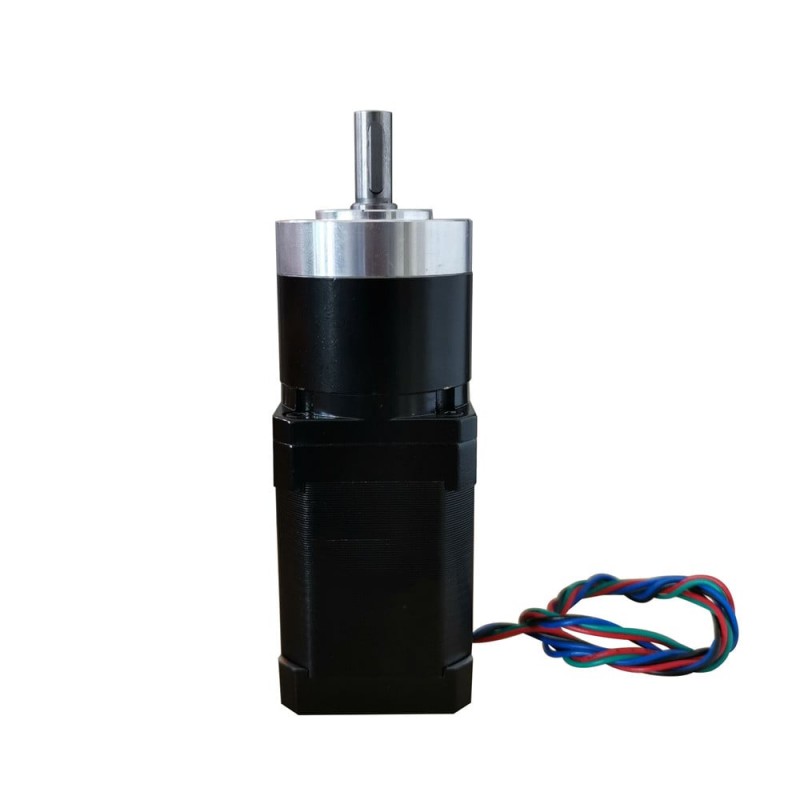

This NEMA 17 geared reduction stepper motor has a long body length 60mm and a rated current 1.8A and is integrated with one precision & low backlash planetary gearbox of 50:1 gear ratio, which generates a strong holding torque otuput upto 10Nm/1420oz-in & a very low speed 0-20rpm. It's an ideal solution to the applications that require limited space but low speed and high torque.
Motor Specification
- Manufacturer Part Number: 42HS60-1804S-HG50
- Step Angle: 1.8deg without gearbox
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.6Nm(85.2oz.in)without gearbox
- Rated Current/phase: 1.8A
- Frame Size: 42x42mm
- Motor Length: 60mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 50:1
- Efficiency: 94%
- Backlash at No-load: <=25arcmin
- Rated Torque: 10Nm/1420oz-in
- Maximun Torque: 20Nm/2840oz-in
- Gearbox Length: 53.5mm
- Shaft Diameter: Φ8mm
- Shaft Length: 22mm
- Keyway Length: 14mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.6 |
| Holding Torque(oz.in) | 85.2 |
| Rated Current(A) | 1.8 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 60 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 50:1 |
| Efficiency | 94% |
| Backlash at No-load | 25arcmin |
| Gearbox Length(mm) | 53.5 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 22 |
