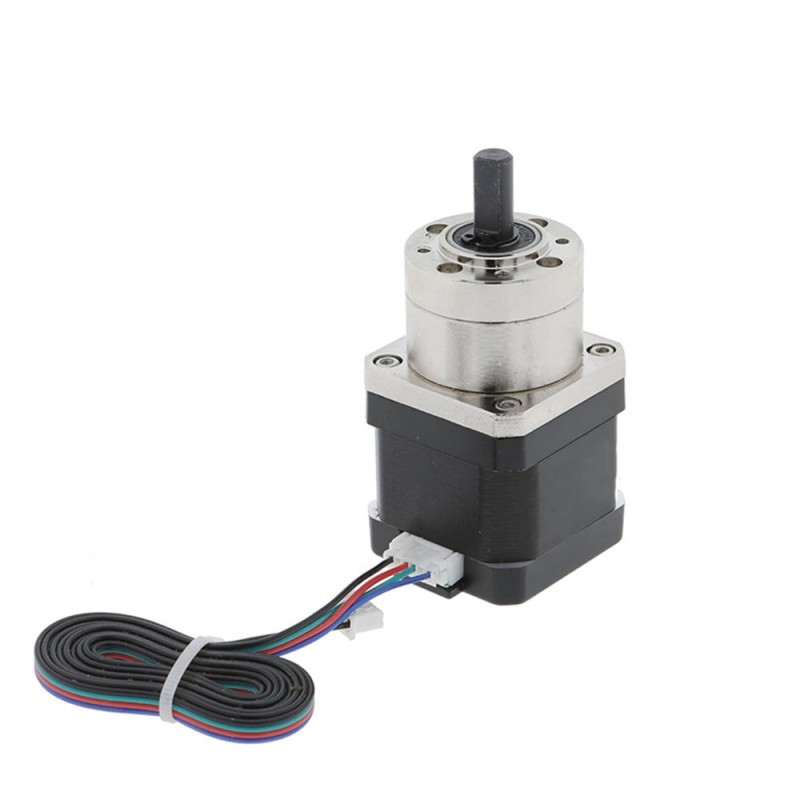

This NEMA 17 geared reduction stepper motor has a moderate body length 40mm and a rated current 1.68A and is integrated with one economy planetary gearbox of 5:1 gear ratio, which generates a strong holding torque otuput upto 4Nm/568oz-in & a very low speed 0-200rpm. It's an ideal solution to the applications that require limited space but low speed and high torque.
Motor Specification
- Manufacturer Part Number: 42HS40-1684S-AG5
- Step Angle: 1.8deg without gearbox
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.45Nm(63.9oz.in)without gearbox
- Rated Current/phase: 1.68A
- Frame Size: 42x42mm
- Motor Length: 40mm
- Number of Leads: 4
- Lead Length: 500mm

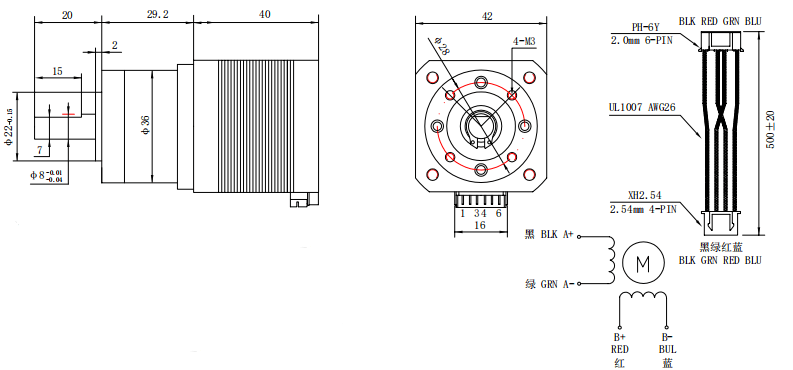

Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 5:1
- Efficiency: 90%
- Backlash at No-load: <=1.0deg
- Rated Torque: 2Nm/284oz-in
- Maximun Torque: 4Nm/568oz-in
- Gearbox Length: 29.2mm
- Shaft Diameter: Φ8mm
- Shaft Length: 20mm
- D-cut Length: 15mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.45 |
| Holding Torque(oz.in) | 63.9 |
| Rated Current(A) | 1.68 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 40 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 5:1 |
| Efficiency | 90% |
| Backlash at No-load | 1deg |
| Gearbox Length(mm) | 29.2 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 20 |
