NEMA 17 External Linear Actuator Stepper Motor 34mm Stack 0.4A Lead 2mm Length 100mm
- Part Number: 42LS34-0404E-100L62
- Lead Time: In Stock
- Unit Price: $30.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

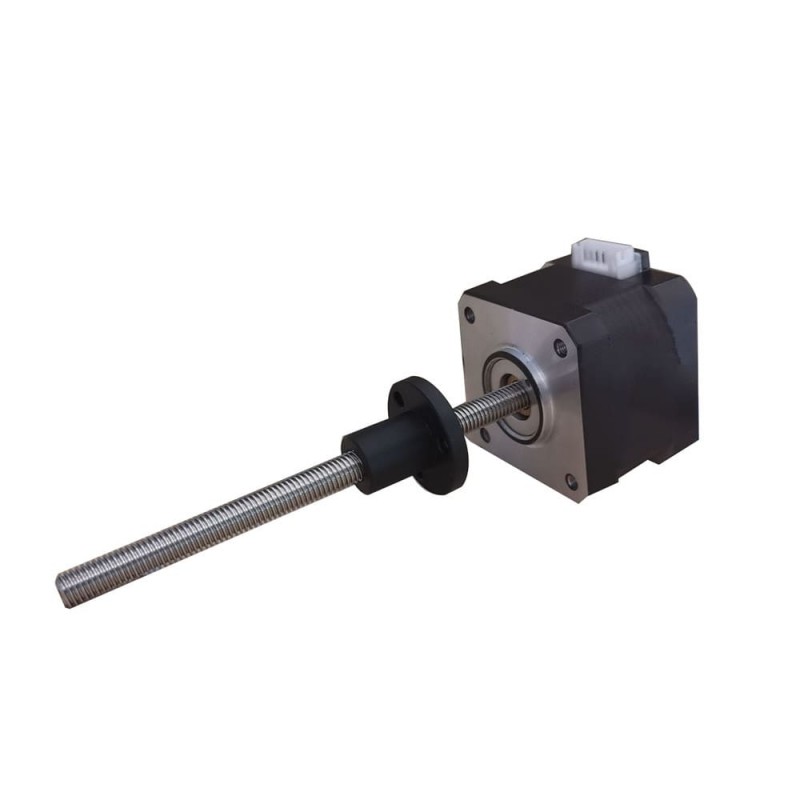

This size 42 external linear actuator with body part 34mm NEMA 17 stepper motor is integrated with a diameter Φ6.35mm lead screw & a POM screw nut moving along the threaded rod. The lead travel is 2mm per revolution or 0.01mm per step.
Electrical Specification
- Part Number: 42LS34-0404E-100L62
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.26Nm/36.92oz.in
- Rated Current/phase: 0.4A
- Phase Resistance: 30ohms
- Inductance: 37mH
- Driving Voltage: 12-24V

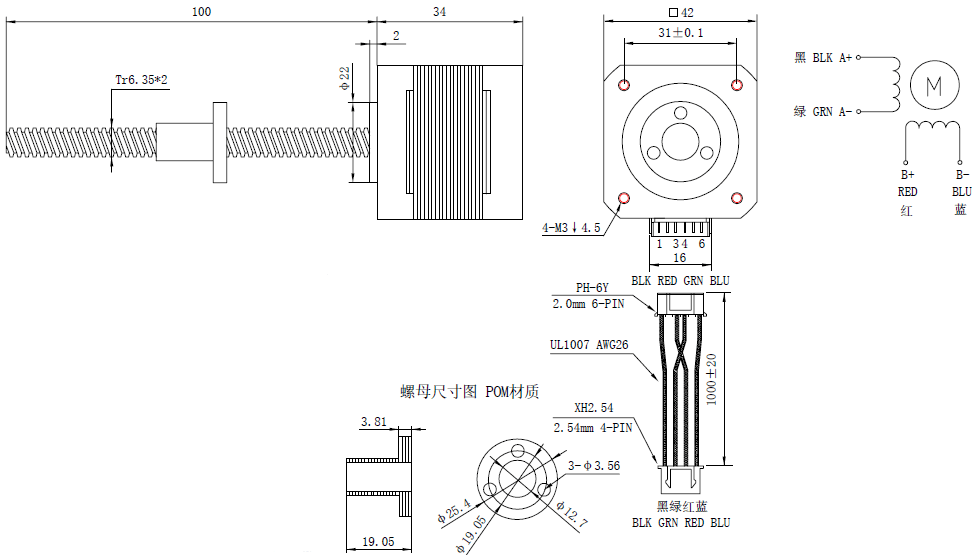

Physical Specification
- Frame Size: 42x42mm
- Body Length: 34mm
- Lead Screw Length: 100mm
- Lead Screw Diameter: Φ6.35mm
- Lead /Step: 0.01mm
- Lead/Revolution: 2mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 0.3kg
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.26 |
| Holding Torque(oz.in) | 36.92 |
| Rated Current(A) | 0.4 |
| Frame Size(mm) | 42x42 |
| Stack Length(mm) | 34 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 100 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Travel/Revolution(mm) | 2 |
| Lead Travel/Step(mm) | 0.01 |
