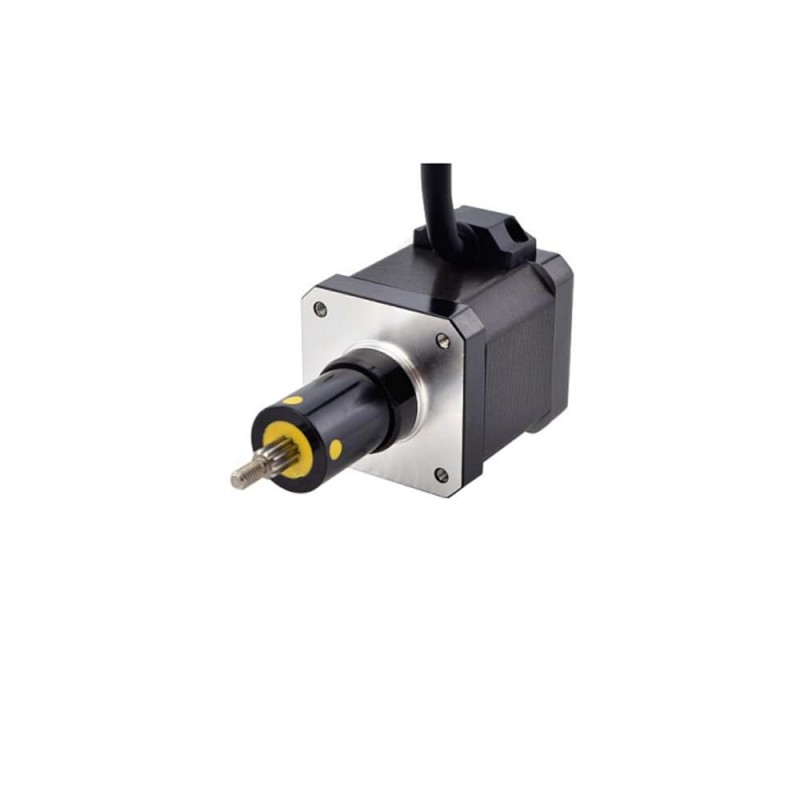

NEMA 17 Captive Linear Actuator Stepper Motor Single Stack 1.5A Lead 6.35mm Travel 25.4mm
- Part Number: 42AI34-1504C-2540
- Lead Time: One Week
- Unit Price: $75.00
- Sales: 9
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This Captive linear actuator electric motor is one size 42mm NEMA 17 linear motion stepper motor with a 34mm body length, 1.8 degree step angle, and 1.5A rated current. It is integrated with a 6.35mm diameter lead screw & lead travel 6.35mm per revolution/0.03175mm per step, and the travel distance is 25.4mm.
Electrical Specification
- Part Number: 42AI34-1504C-2540
- Motor Type: Captive Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.25Nm/35.5oz.in
- Rated Current/phase: 1.5A
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: 42x42mm
- Motor Length: 34mm
- Lead Travel Distance: 25.4mm
- Lead Screw Diameter: Φ6.35mm
- Lead Screw/Step: 0.03175mm
- Lead Screw/Revolution: 6.35mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.3KG
Contact Us
| Motor Specification | |
| Motor Type | Captive Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.25 |
| Holding Torque(oz.in) | 35.5 |
| Rated Current(A) | 1.5 |
| Frame Size(mm) | 42x42 |
| Stack Length(mm) | 34 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Travel Distance(mm) | 25.4 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Travel/Revolution(mm) | 0.03175 |
| Lead Travel/Step(mm) | 6.35 |
