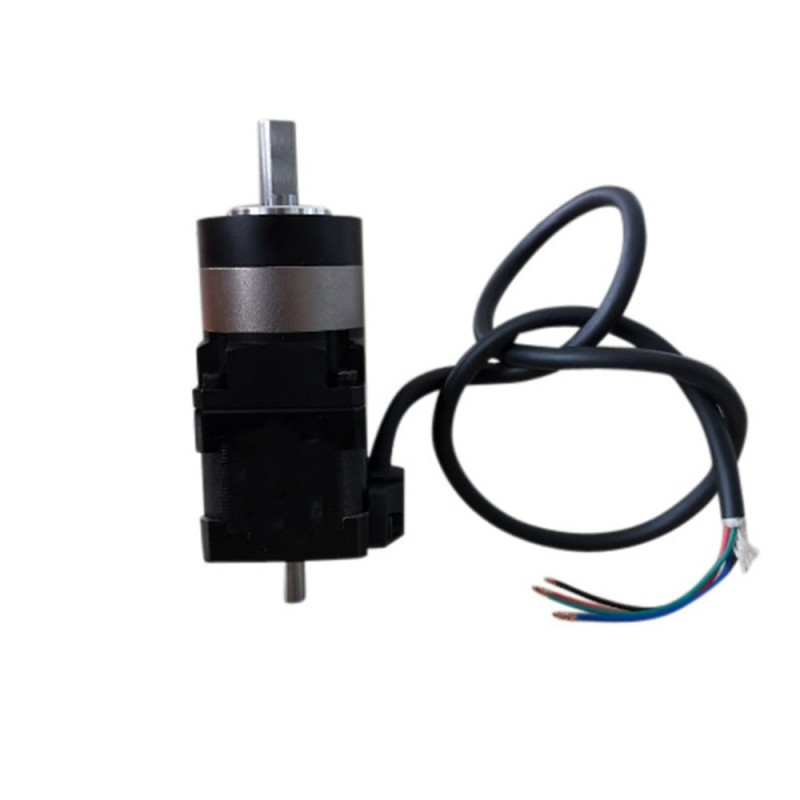

NEMA 14 Stepper Motor Dual Shaft L=34mm with Rear Shaft & Gear Ratio 20:1 High Precision Planetary Gearbox
- Part Number: 35HS34-1004D-HG20
- Lead Time: In Stock
- Unit Price: $90.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
NEMA 14 Stepper Motor Dual Shaft L=34mm with Rear Shaft & Gear Ratio 20:1 High Precision Planetary Gearbox
Motor Specification
- Part Number: 35HS34-1004D-HG20
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.14Nm/19.88oz.in
- Rated Current/phase: 1.0A
- Driving Voltage: 12-24V
- Frame Size: 35x35mm
- Motor Length: 34mm
- Rear Shaft Diameter: Φ5mm
- Rear Shaft Length: Φ15mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 20:1
- Efficiency: 94%
- Backlash at No-load: <=15arcmin
- Gearbox Length: 44.5mm
- Shaft Diameter: Φ8mm
- Shaft Length: 20mm
- D-cut Length: 15mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.14 |
| Holding Torque(oz.in) | 19.8 |
| Rated Current(A) | 1.0 |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 34 |
| Rear Shaft Diameter(mm) | 5 |
| Rear Shaft Length(mm) | 15 |
| Driving Voltage(VDC) | 12-24 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 20:1 |
| Efficiency | 94% |
| Backlash at No-load | 15arcmin |
| Gearbox Length(mm) | 44.5 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 20 |
