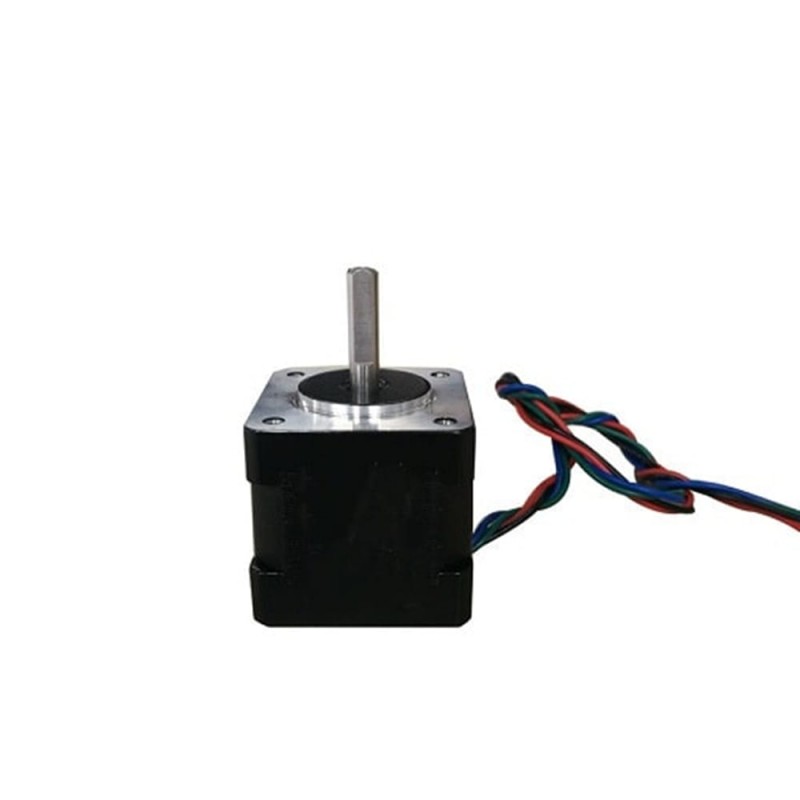

This is bipolar NEMA 14 stepper motor with 34mm body. It has 4 wires, each phase draws 1.0A with holding torque 0.14Nm/19.8oz.in.
Electrical Specification
- Part Number: 35HS34-1004S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.14Nm/19.88oz.in
- Rated Current/phase: 1.0A
- Phase Resistance: 2.7ohms
- Inductance: 4.3mH
- Driving Voltage: 12-24VDC

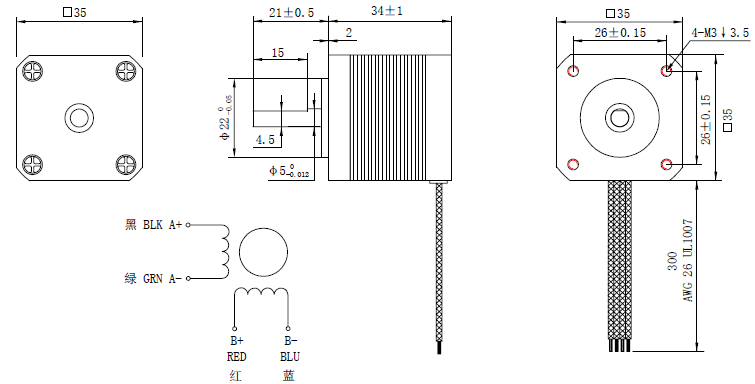

Physical Specification
- Frame Size: 35x35mm
- Body Length: 34mm
- Shaft Diameter: Φ5mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.17kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.14 |
| Holding Torque(oz.in) | 19.88 |
| Rated Current(A) | 1.0 |
| Phase Resistance(ohm) | 2.7 |
| Phase Inductance(mH) | 4.3 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 34 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 21 |
| No. of Leads | 4 |
| Lead Length(mm) | 300 |
| Weight(KG) | 0.17 |
