NEMA 14 Stepper Motor Bipolar 1.8deg 1.0A 0.125Nm/17.75oz.in 35x28mm 4 Wires
- Part Number: 35HS28-1004A
- Lead Time: In Stock
- Unit Price: $8.50
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

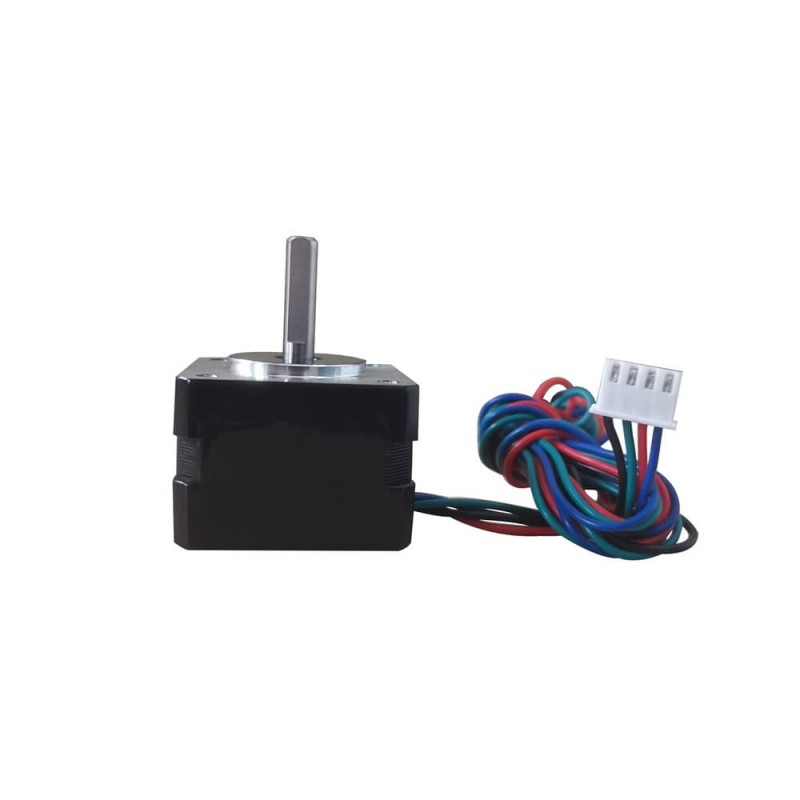

This is bipolar NEMA 14 stepper motor with 28mm body. It has 4 wires, each phase draws 1A with holding torque 0.125Nm/17.75oz.in. A length of 500mm cable with JST XH2.54 4 PIN connector is available.
Electrical Specification
- Part Number: 35HS28-1004A
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.125Nm/17.75oz.in
- Rated Current/phase: 1A
- Phase Resistance: 3.5ohms
- Inductance: 3.5mH
- Driving Voltage: 12-24VDC

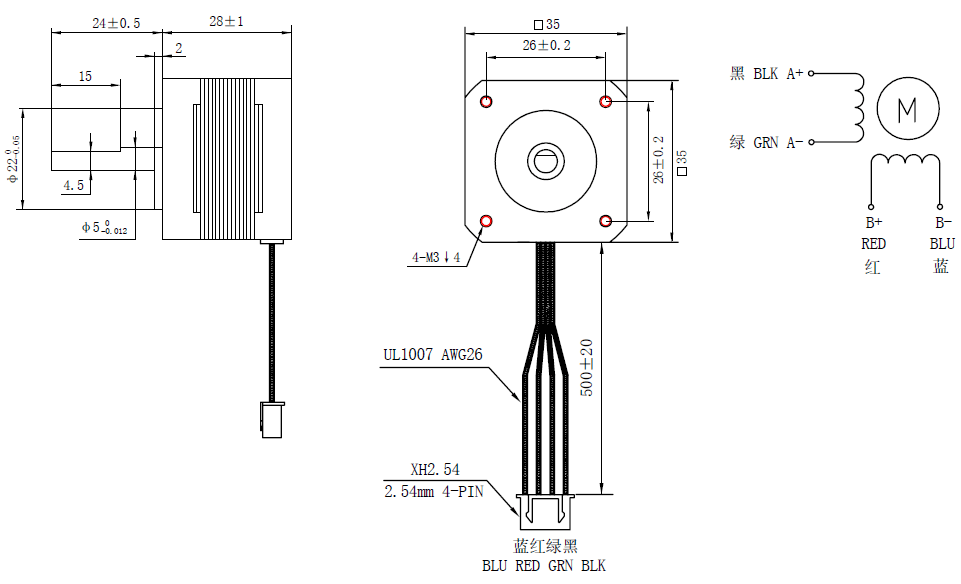

Physical Specification
- Frame Size: 35x35mm
- Body Length: 28mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.15kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.125 |
| Holding Torque(oz.in) | 17.75 |
| Rated Current(A) | 1 |
| Phase Resistance(ohm) | 3.5 |
| Phase Inductance(mH) | 3.5 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 28 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.15 |
