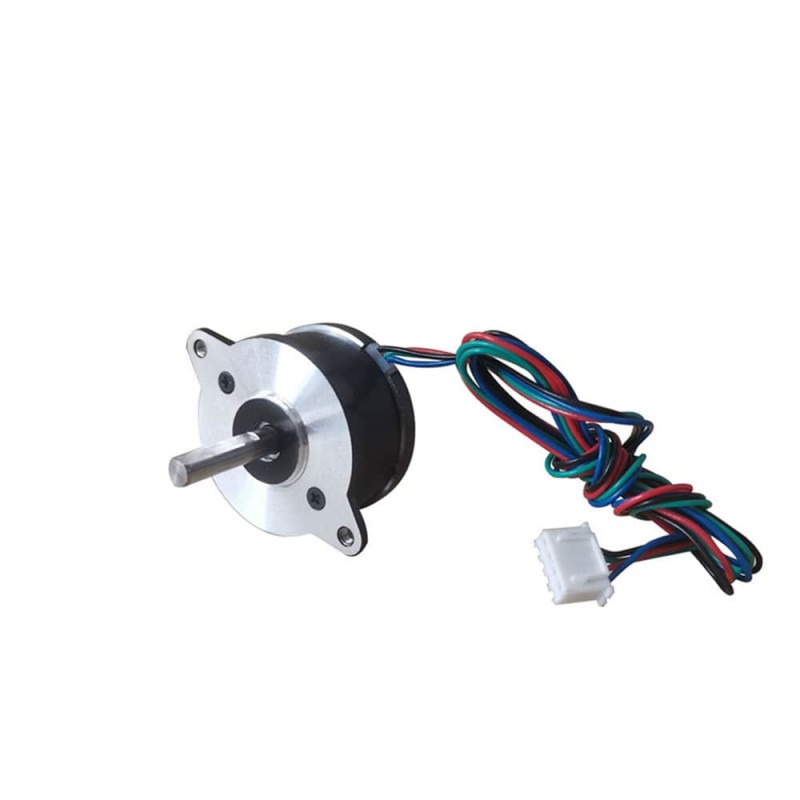

This is round NEMA 14 stepper motor with step angle 1.8deg and body length 20mm. It has 4 wires, each phase draws 1.0A and holding torque 0.12Nm/17.04oz.in.
Electrical Specification
- Part Number: 35HS20-1004S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.12Nm(17.04oz.in)
- Rated Current/phase: 1.0A
- Phase Resistance: 10.0ohms
- Inductance: 6.0mH
- Driving Voltage: 12-24V

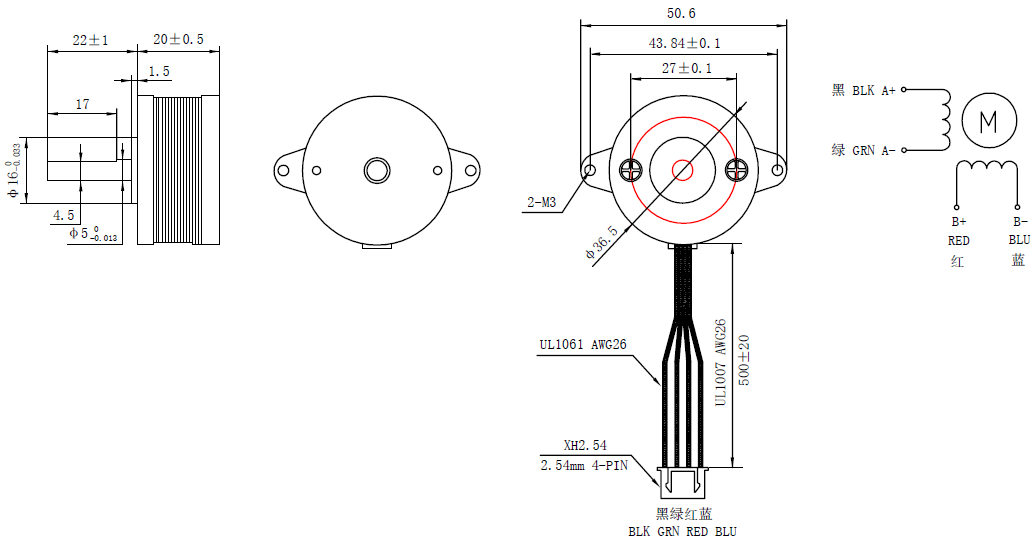

Physical Specification
- Frame Size: Φ36.5mm
- Body Length: 20mm
- Shaft Diameter: Φ5mm
- Shaft Length: 22mm
- D-cut Length: 17mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.1kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.12 |
| Holding Torque(oz.in) | 17.04 |
| Rated Current(A) | 1.0 |
| Phase Resistance(ohm) | 10.0 |
| Phase Inductance(mH) | 6.5 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | Φ36.5 |
| Body Length(mm) | 20 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 22 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.10 |
