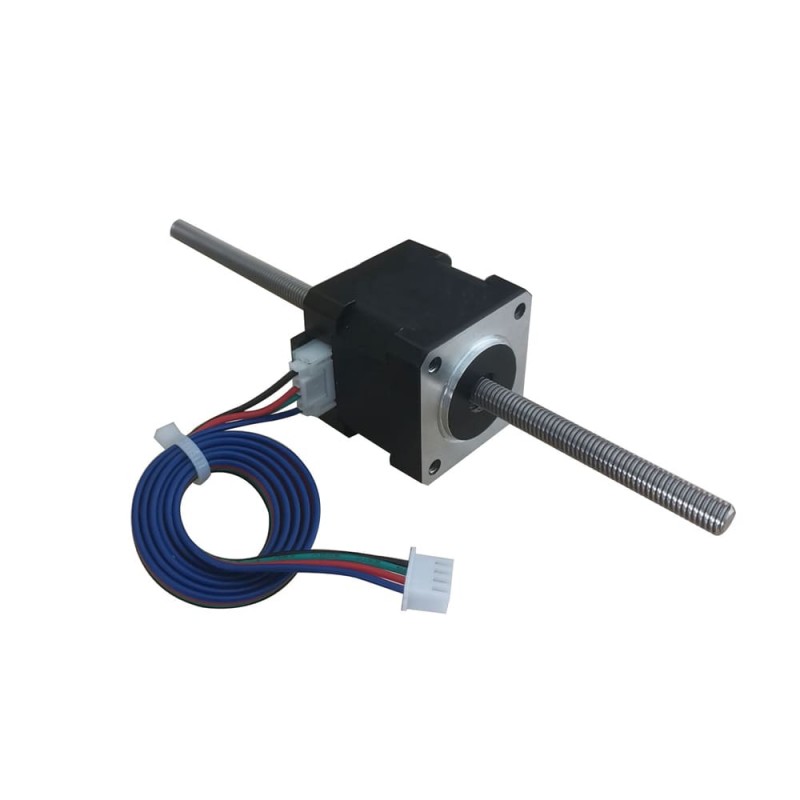

NEMA 14 Non-captive Linear Actuator Stepper Motor 34mm Stack 1.0A Lead 4mm Length 200mm
- Part Number: 35LS34-1004N-200L54
- Lead Time: In Stock
- Unit Price: $40.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 14 Non-captive linear actuator stepper motor with body part 34mm is integrated with a diameter Φ6mm lead screw. The lead travel is 4mm per revolution or 0.02mm per step.
Electrical Specification
- Part Number: 35LS34-1004N-200L64
- Motor Type: Non-captive
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.14Nm/19.88oz.in
- Rated Current/phase: 1.0A
- Phase Resistance: 2.7ohms
- Inductance: 4.3mH
- Driving Voltage: 12-24

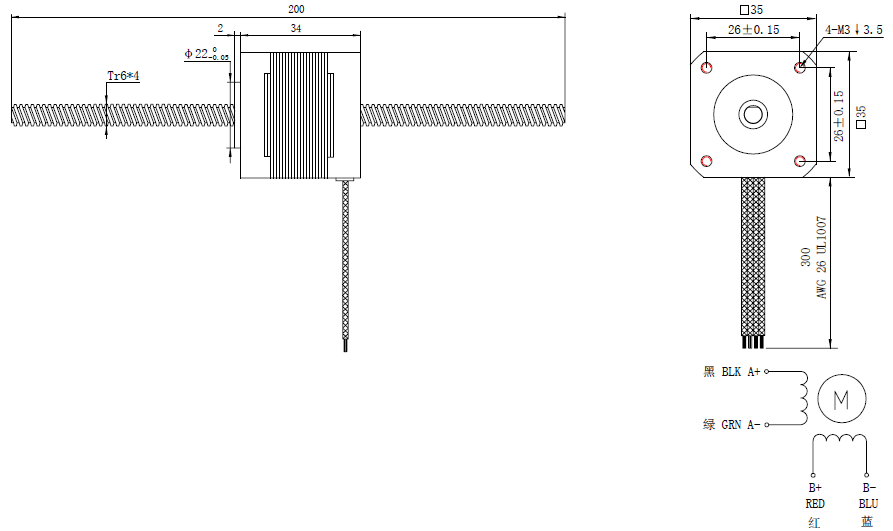

Physical Specification
- Frame Size: 35x35mm
- Body Length: 34mm
- Lead Screw Length: 200mm
- Lead Screw Diameter: Φ6mm
- Lead /Step: 0.02mm
- Lead/Revolution: 4mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.2kg
Contact Us
Motor Specification | |
Step Angle(°) | 1.8 |
Bipolar/Unipolar | Bipolar |
Holding Torque(Nm) | 0.14 |
Holding Torque(oz.in) | 19.88 |
Rated Current(A) | 1 |
Frame Size(mm) | 35x35 |
Stack Length(mm) | 34 |
Driving Voltage(VDC) | 12-24 |
Lead Screw Specification | |
Lead Screw Length(mm) | 200 |
Lead Screw Diameter(mm) | 6 |
Lead Travel/Revolution(mm) | 4 |
Lead Travel/Step(mm) | 0.02 |
