NEMA 14 Linear Actuator Stepper Motor 34mm Stack 1.0A Lead 2mm Screw Length 180mm M5 Nose
- Part Number: 35AI34-1004N-180L62
- Lead Time: In Stock
- Unit Price: $40.00
- Sales: 7
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

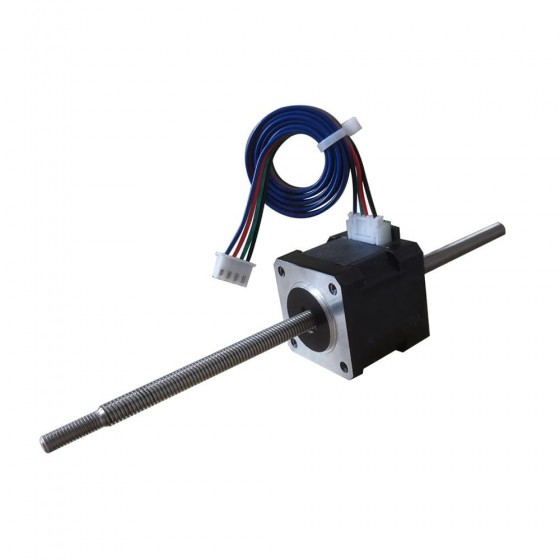

This NEMA 14 Non-captive linear actuator stepper motor with body part 34mm is integrated with a diameter Φ6mm lead screw. The lead travel is 2mm per revolution or 0.01mm per step.
Electrical Specification
- Part Number: 35AI34-1004N-180L62
- Motor Type: Non-captive
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.14Nm/19.88oz.in
- Rated Current/phase: 1A
- Phase Resistance: 2.7ohms
- Inductance: 4.3mH
- Driving Voltage: 12-24V

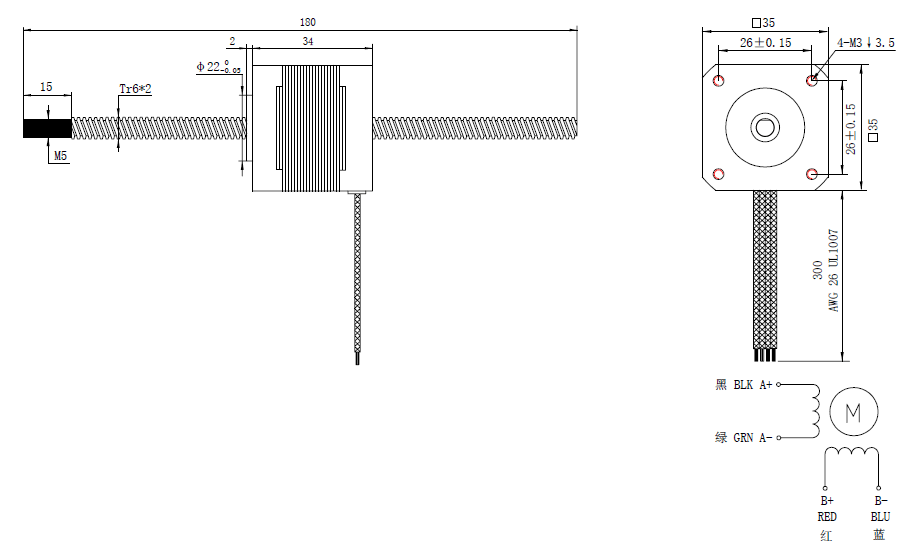

Physical Specification
- Frame Size: 35x35mm
- Body Length: 34mm
- Lead Screw Length: 180mm
- Lead Screw Diameter: Φ6mm
- Lead /Step: 0.02mm
- Lead/Revolution: 2mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.2kg
Contact Us
| Motor Specification | |
| Motor Type | Non-captive |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.14 |
| Holding Torque(oz.in) | 19.88 |
| Rated Current(A) | 1.0 |
| Frame Size(mm) | 35x35 |
| Stack Length(mm) | 34 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 180 |
| Lead Screw Diameter(mm) | 6 |
| Lead Travel/Revolution(mm) | 2 |
| Lead Travel/Step(mm) | 0.01 |
