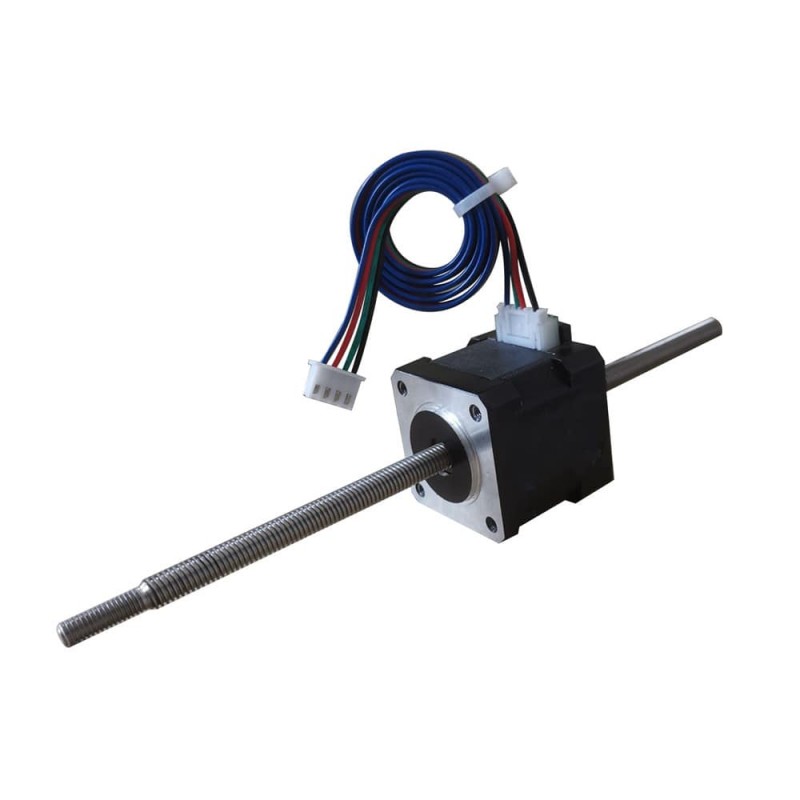

This noncaptive linear actuator electric motor is one size 35mm NEMA 14 linear motion stepper motor with a 34mm body length, 1.8 degree step angle, and 1.0A rated current. It is integrated with a 6mm diameter lead screw & lead 2mm per revolution/0.01mm per step, and the lead screw length is 180mm with M5 thread nose.
Electrical Specification
- Part Number: 35HS34-1004N-180N62M5
- Motor Type: Non-captive Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.14Nm(19.88oz.in)
- Rated Current/phase: 1.0A
- Driving Voltage: 12-24V

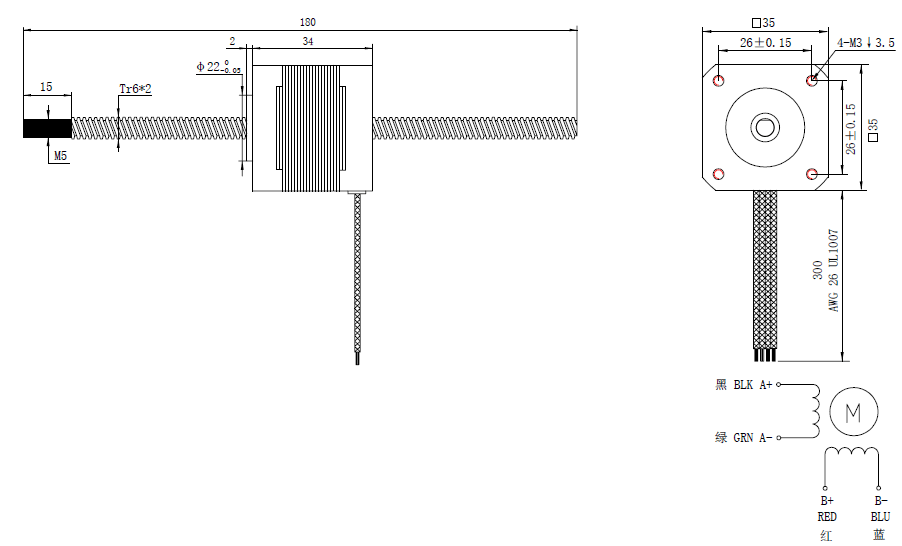

Physical Specification
- Frame Size: 35x35mm
- Motor Length: 34mm
- Ball Screw Length: 180mm
- Ball Screw Diameter: Φ6mm
- Ball Screw/Step: 0.01mm
- Ball Screw/Revolution: 2mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.25KG
Contact Us
| Motor Specification | |
| Motor Type | Non-captive Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.14 |
| Holding Torque(oz.in) | 19.88 |
| Rated Current(A) | 1.0 |
| Frame Size(mm) | 35x35 |
| Stack Length(mm) | 34 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 180 |
| Lead Screw Diameter(mm) | 6 |
| Lead Travel/Revolution(mm) | 2 |
| Lead Travel/Step(mm) | 0.01 |
