NEMA 14 Linear Actuator Ball Screw Stepper Motor Dual Shaft 34mm Stack 1.5A Lead 2mm with Rear Shaft
- Part Number: 35LS34-1504G-100L82B
- Lead Time: In Stock
- Unit Price: $80.00
- Sales: 17
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

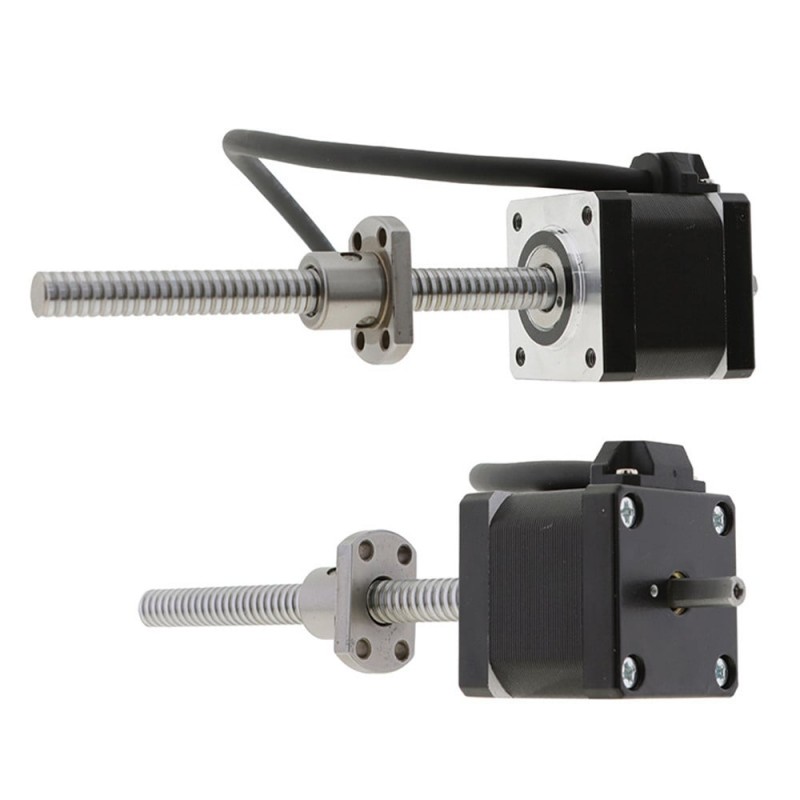

This ball screw linear actuator electric motor is one size 35mm NEMA 14 linear motion dual shaft stepper motor with a 34mm body length, 1.8 degree step angle 1.5A rated current, and a length of 12mm rear shaft. It is integrated with a 8mm diameter ball screw & lead 2mm per revolution/0.01mm per step, a high quality ball screw nut and a ball screw length is 100mm.
Electrical Specification
- Part Number: 35LS34-1504G-100L82B
- Motor Type: External Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.14Nm/19.88oz.in
- Rated Current/phase: 1.5A
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: 35x35mm
- Motor Length: 34mm
- Ball Screw Length: 100mm
- Ball Screw Diameter: Φ8mm
- Ball Screw/Step: 0.01mm
- Ball Screw/Revolution: 2mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.25KG
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.14 |
| Holding Torque(oz.in) | 19.88 |
| Rated Current(A) | 1.5 |
| Frame Size(mm) | 35x35 |
| Stack Length(mm) | 34 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 100 |
| Lead Screw Diameter(mm) | 8 |
| Lead Travel/Revolution(mm) | 2 |
| Lead Travel/Step(mm) | 0.01 |
