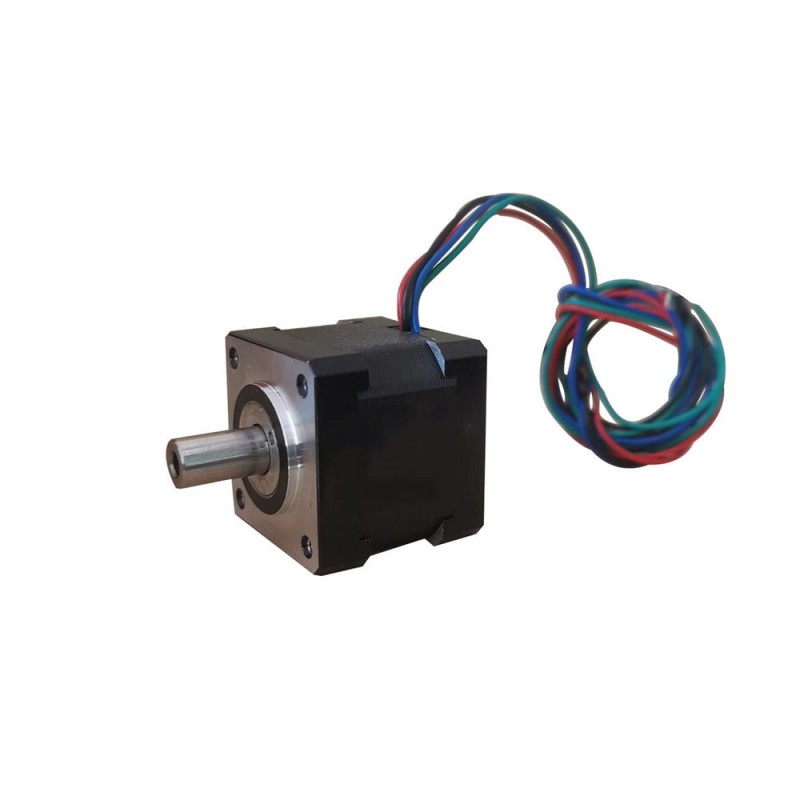

This popular size 35mm NEMA 14 hollow shaft stepper motor has a body length 33mm with 1.25A rated current & holding torque 0.16Nm/22.72oz.in. A hollow shaft with outer diameter Φ8.0mm & inner diameter Φ4mm is available and also a double shaft with front shaft length of 16mm & rear shaft length of 9mm is designed.
Electrical Specification
- Part Number: 35HS33-1254K
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.16Nm(22.72oz.in)
- Rated Current/phase: 1.25A
- Phase Resistance: 1.86ohms
- Inductance: 2.8mH
- Driving Voltage:12-24V

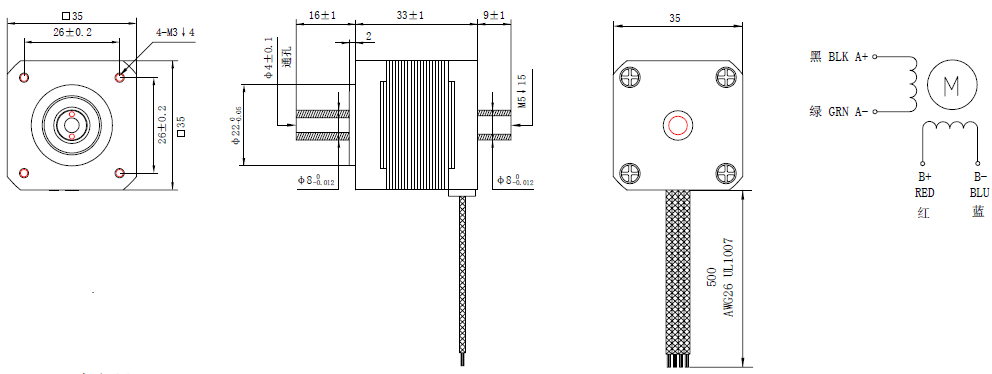

Physical Specification
- Frame Size: 35x35mm
- Body Length: 33mm
- Outer Shaft Diameter: Φ8.0mm
- Inner Shaft Diameter: Φ4.0mm
- Front Shaft Length: 16mm
- Rear Shaft Length: 9mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.2KG
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.16 |
| Holding Torque(oz.in) | 22.72 |
| Rated Current(A) | 1.25 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 33 |
| Inner Shaft Diameter(mm) | 4.0 |
| Outer Shaft Diameter(mm) | 8.0 |
| Front Shaft Length(mm) | 16 |
| Rear Shaft Length(mm) | 9 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.2 |
