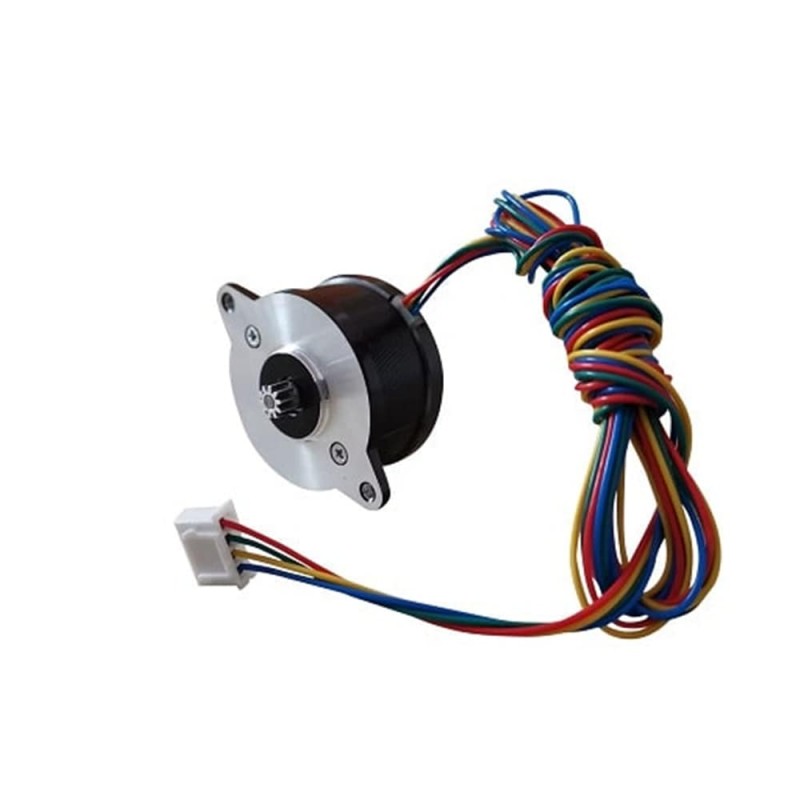

NEMA 14 High Temperature Stepper Motor Round 1.8deg 1.0A 0.12Nm/17.04oz.in Φ36.5x20mm 4 Leads
- Part Number: 36HS20-1004HT
- Lead Time: In Stock
- Unit Price: $30.00
- Sales: 7
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
NEMA 14 High Temperature Stepper Motor Round 1.8deg 1.0A 0.12Nm/17.04oz.in Φ36.5x20mm 4 Leads
Electrical Specification
- Part Number: 36HS20-1004HT
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.12Nm/17.04oz.in
- Rated Current/phase: 1.0A
- Phase Resistance: 2.1ohms
- Inductance: 1.6mH
- Driving Voltage: 12-24VDC
- Insulation Class: H
Physical Specification
- Frame Size: Φ36.5mm
- Body Length: 20mm
- Shaft Diameter: Φ2.5mm
- Shaft Length: 6mm
- Gear Module: 0.5
- Gear Teeth: 10
- Gear Material: SUS304
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 0.11kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.12 |
| Holding Torque(oz.in) | 17.04 |
| Rated Current(A) | 1.0 |
| Phase Resistance(ohm) | 2.1 |
| Phase Inductance(mH) | 1.6 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | Φ36.5 |
| Body Length(mm) | 20 |
| Shaft Type | Round |
| Shaft Diameter(mm) | 2.5 |
| Shaft Length(mm) | 6 |
| No. of Leads | 4 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 0.11 |
