NEMA 14 Closed-loop Hollow Shaft Stepper Motor 1.5A 0.13Nm/18.46oz.in
- Part Number: 35HB32-1504HE
- Lead Time: In Stock
- Unit Price: $80.00
- Sales: 7
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

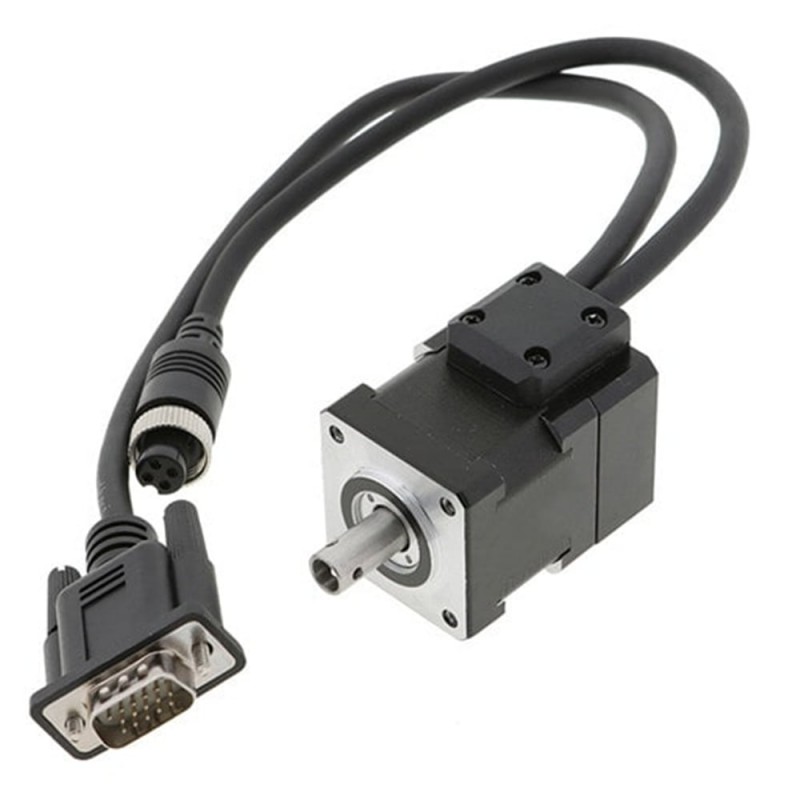

This compact size 35mm NEMA 14 hollow shaft closed-loop stepper motor has a body length 32.5mm with 1.5A rated current & holding torque 0.13Nm/18.46oz.in. A hollow shaft with outer diameter Φ8.0mm & inner diameter Φ3.7mm is available and also a double shaft with the front shaft length 16mm and rear shaft length 7.5mm is designed.
Electrical Specification
- Part Number: 35HB32-1504HE
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.13Nm/18.46oz.in
- Rated Current/phase: 1.5A
- Phase Resistance: 1.8ohms
- Inductance: 1.9mH
- Driving Voltage: 12-24V

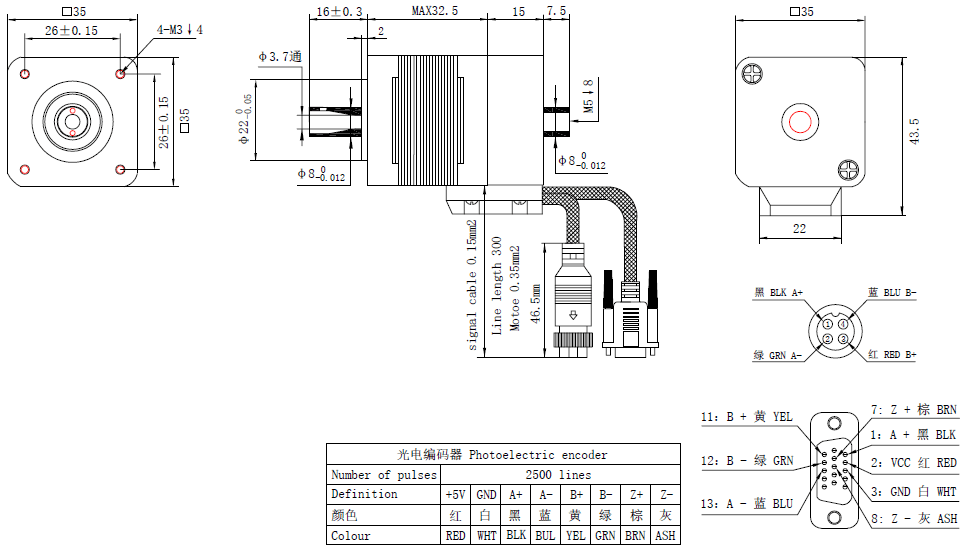

Physical Specification
- Frame Size: 35x35mm
- Body Length: 32.5mm
- Outer Shaft Diameter: Φ8.0mm
- Inner Shaft Diameter: Φ3.7mm
- Front Shaft Length: 16.0mm
- Rear Shaft Length: 7.5mm
- Number of Leads: 4
- Lead Length: 300mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 2500CPR
- Encoder Signal Channels: 3
- No. of Leads: 8
- Lead Length: 300mm
- Supply Voltage: 5.0V
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.13 |
| Holding Torque(oz.in) | 18.46 |
| Rated Current(A) | 1.5 |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 32.5 |
| Front Shaft Length(mm) | 16 |
| Rear Shaft Length(mm) | 7.5 |
| Driving Voltage(VDC) | 12-24 |
| Encoder Specification | |
| Encoder Resolution(CPR) | 2500 |
| Encoder Type | Incremental |
| Supply Voltage(VDC) | 5.0 |
