NEMA 14 Bipolar 1.8deg 40Ncm(56.64oz.in) 1.5A 35x35x52mm 14HS20-1504S
- Part Number: 14HS20-1504S
- Lead Time: In Stock
- Unit Price: $8.50
- Sales: 63
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

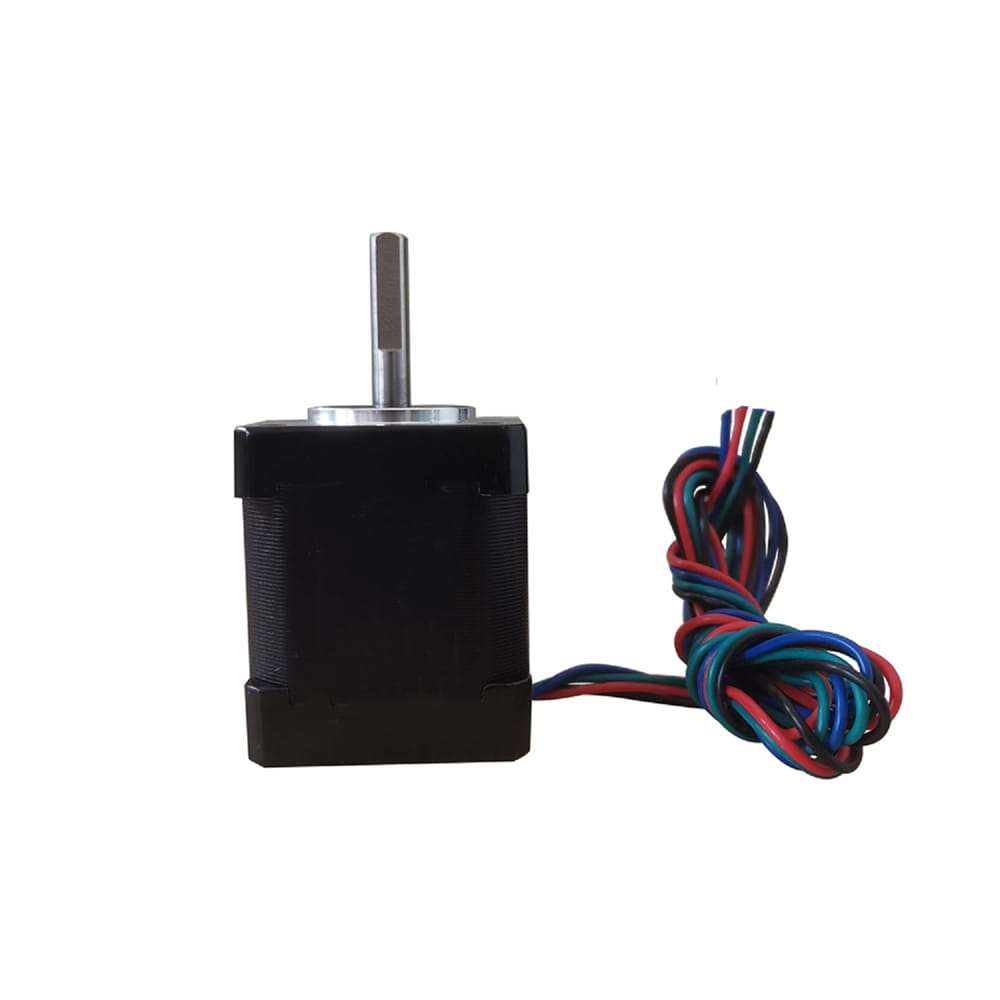

This engine is a NEMA 14 stepper motor with step angle 1.8deg and size 35x35x52mm. It has 4 wires, each phase draws 1.5A with holding torque 40Ncm(56.64oz.in).
Electrical Specification
- Part Number: 14HS20-1504S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 40Ncm(56.64oz.in)
- Rated Current/phase: 1.5A
- Phase Resistance: 2.8ohms
- Inductance: 3.8mH
- Driving Voltage: 12-24V

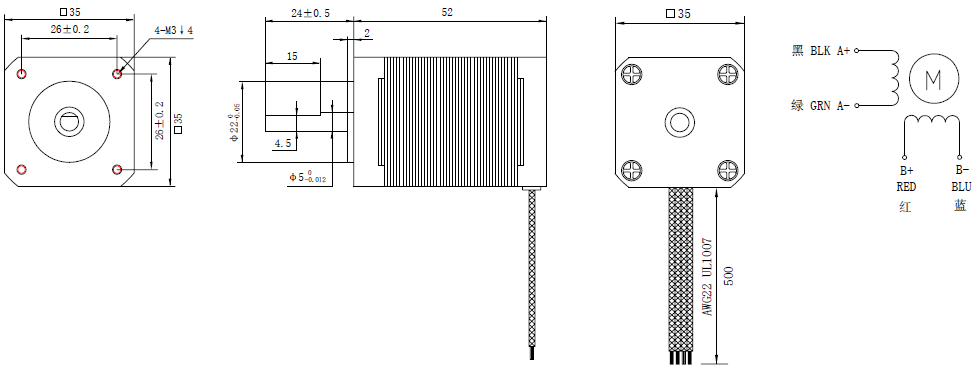

Physical Specification
- Frame Size: 35x35mm
- Body Length: 52mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 12mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.35kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.4 |
| Holding Torque(oz.in) | 56.64 |
| Rated Current(A) | 1.5 |
| Phase Resistance(ohm) | 2.8 |
| Phase Inductance(mH) | 3.8 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 52 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.35 |
