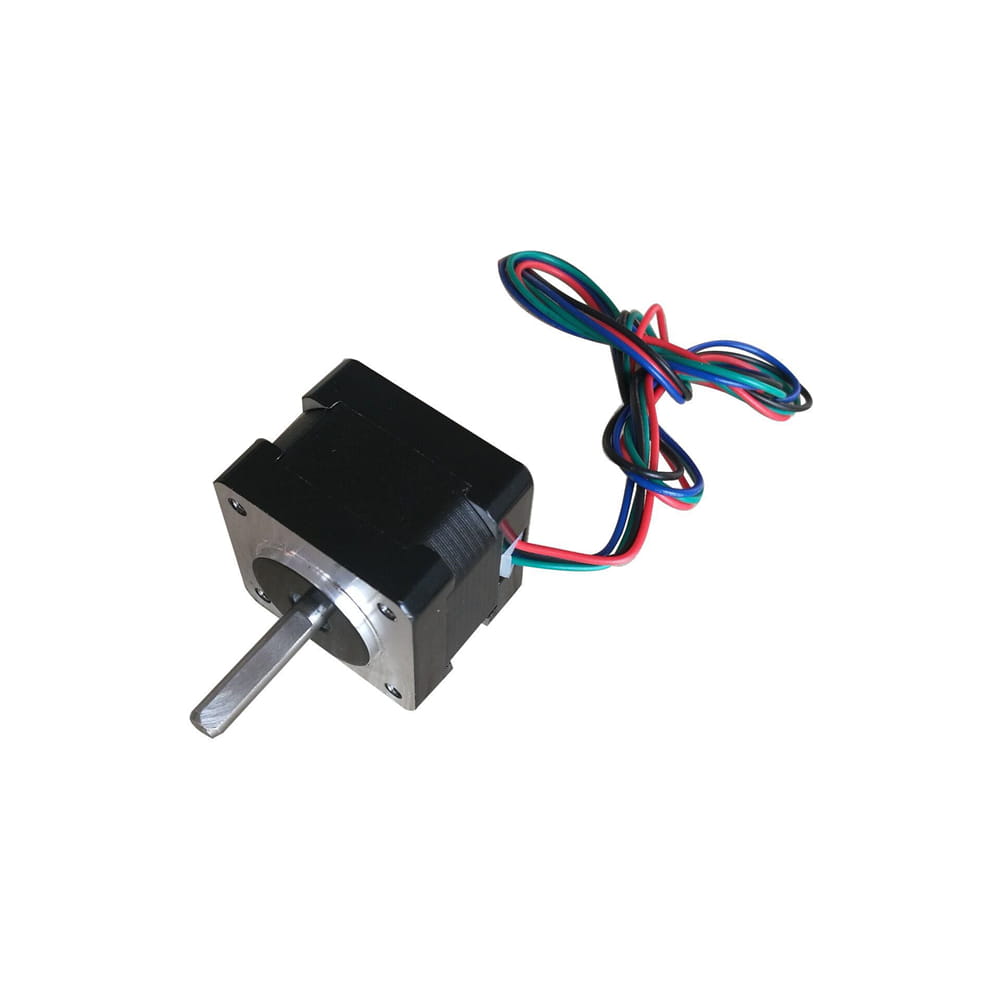

NEMA 14 Bipolar 1.8deg 18Ncm(25.5oz.in) 0.8A 35x35x34mm 14HS13-0804S
- Part Number: 14HS13-0804S
- Lead Time: In Stock
- Unit Price: $6.50
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This engine is a bipolar NEMA 14 stepper motor with step angle 1.8deg and size 35x35x34mm. It has 4 wires, each phase draws 0.8A with holding torque 18Ncm(25.5oz.in).
Electrical Specification
- Part Number: 14HS13-0804S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 18Ncm(25.5oz.in)
- Rated Current/phase: 0.8A
- Phase Resistance: 6.8ohms
- Inductance: 10mH
- Driving Voltage: 12-24V

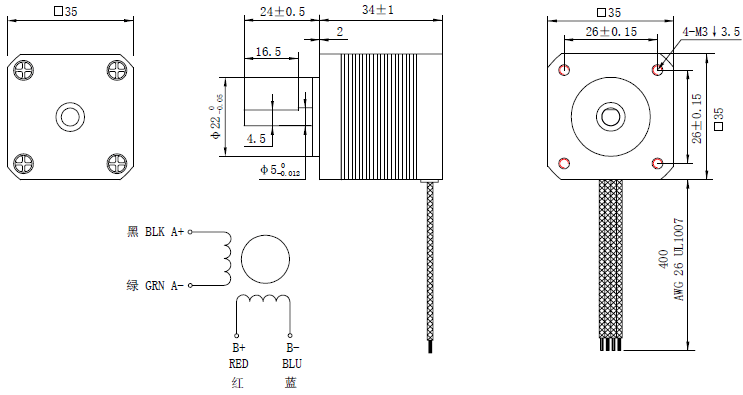

Physical Specification
- Frame Size: 35x35mm
- Body Length: 34mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 16.5mm
- Number of Leads: 4
- Lead Length: 400mm
- Weight: 0.18kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.18 |
| Holding Torque(oz.in) | 25.5 |
| Rated Current(A) | 0.8 |
| Phase Resistance(ohm) | 6.8 |
| Phase Inductance(mH) | 10 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 34 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Leads | 4 |
| Lead Length(mm) | 400 |
| Weight(KG) | 0.18 |
