NEMA 14 Ball Screw Linear Actuator Stepper Motor Dual Shaft 34mm Stack 1.5A Lead 2mm with Rear Shaft
- Part Number: 35AI34-1504G-100L82B
- Lead Time: In Stock
- Unit Price: $125.00
- Sales: 7
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

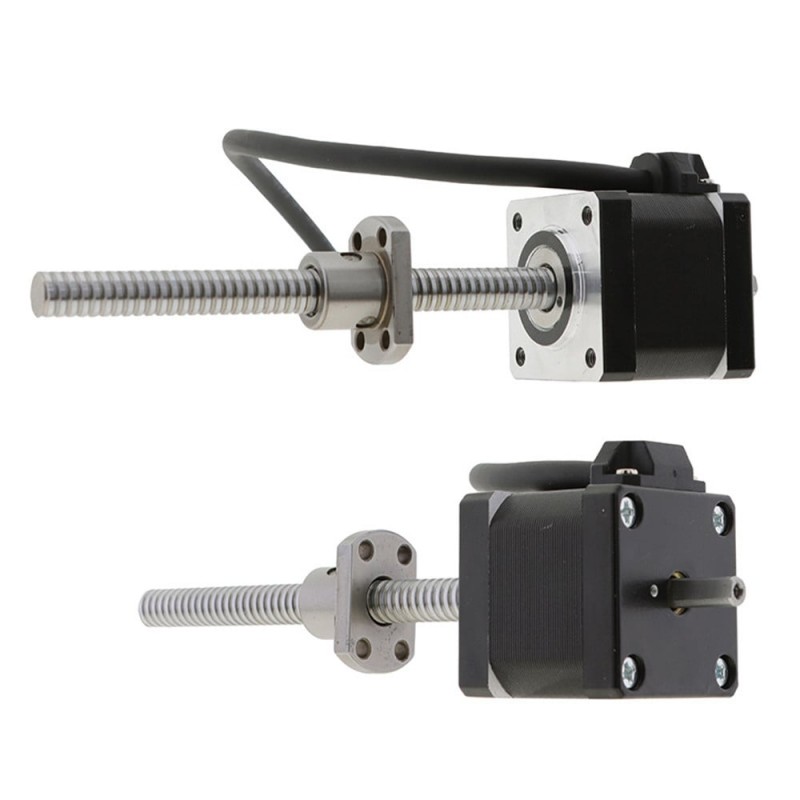

This compact ball screw linear actuator electric motor is a size 35mm NEMA 14 linear motion stepper dual shaft with a 34mm body length, 1.8 degree step angle, and 1.5A rated current. It is integrated with a Φ8mm diameter ball screw & lead travel 2mm per revolution/0.01mm per step, a high quality ball screw nut. The ball screw length is 100mm and can be customzied.
Electrical Specification
- Part Number: 35AI34-1504G-100L82B
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipoalr: Bipolar
- Rated Current/phase: 1.5A
- Phase Resistance: 0.95ohms
- Inductance: 1.0mH
- Driving Voltage: 12-24V

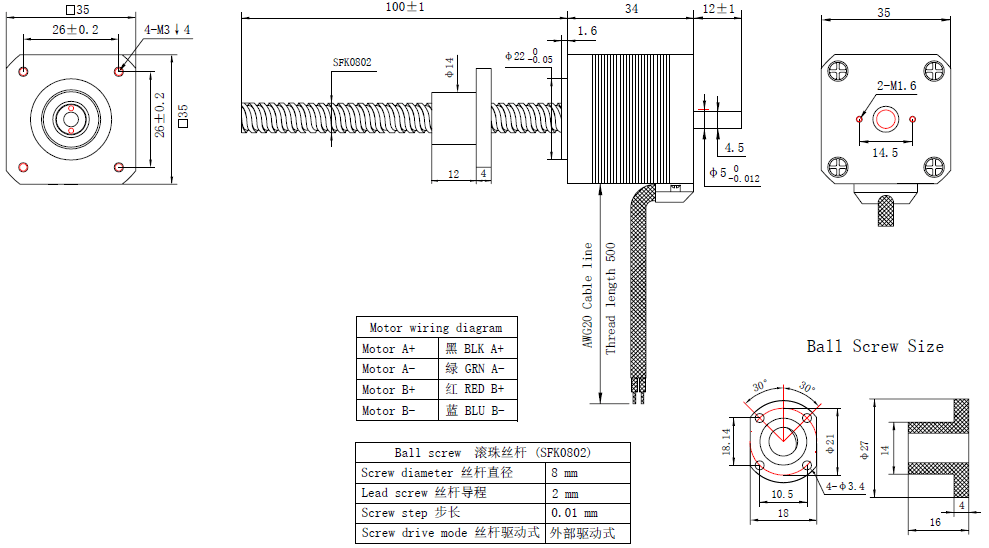

Physical Specification
- Frame Size: 35x35mm
- Body Length: 34mm
- Rear Shaft Diameter: Φ5mm
- Rear Shaft Length: Φ12mm
- Ball Screw Length: 100mm
- Ball Screw Diameter: Φ8mm
- Ball Screw/Step: 0.01mm
- Ball Screw/Revolution: 2mm
- Number of Leads: 4
- Lead Length: 500mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Rated Current(A) | 1.5 |
| Frame Size(mm) | 35x35 |
| Stack Length(mm) | 34 |
| Rear Shaft Diameter(mm) | 5 |
| Rear Shaft Length(mm) | 12 |
| Driving Voltage(VDC) | 12-24 |
| Ball Screw Specification | |
| Ball Screw Size | 0802 |
| Ball Screw Length(mm) | 100 |
| Ball Screw Diameter(mm) | 8 |
| Ball Screw Travel/Revolution(mm) | 2 |
| Ball Screw Travel/Step(mm) | 0.01 |
