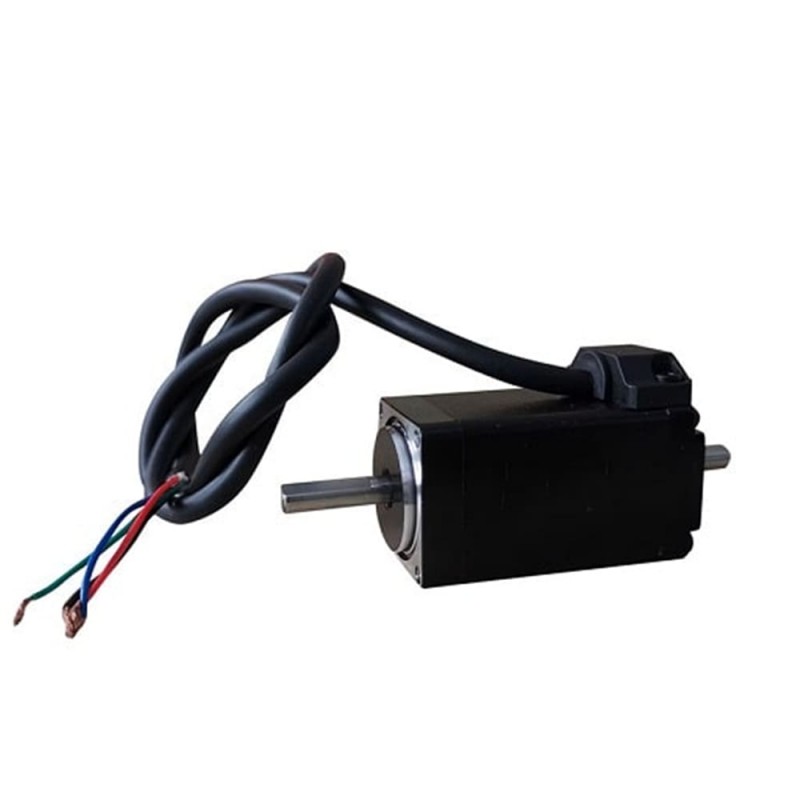

This is bipolar NEMA 11 stepper motor with step angle 1.8deg and size 28x28x52mm. It has 4 wires with flexible harness cable, each phase draws 1.0A rated current with holding torque 0.12Nm/17.04oz.in. A length of 13.5mm rear shaft is available.
Electrical Specification
- Part Number: 28HP52-1004D
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.12m/17.04oz.in
- Rated Current/phase: 1.0A
- Phase Resistance: 4.1ohms
- Inductance: 4.0mH
- Driving Voltage: 12-24VDC

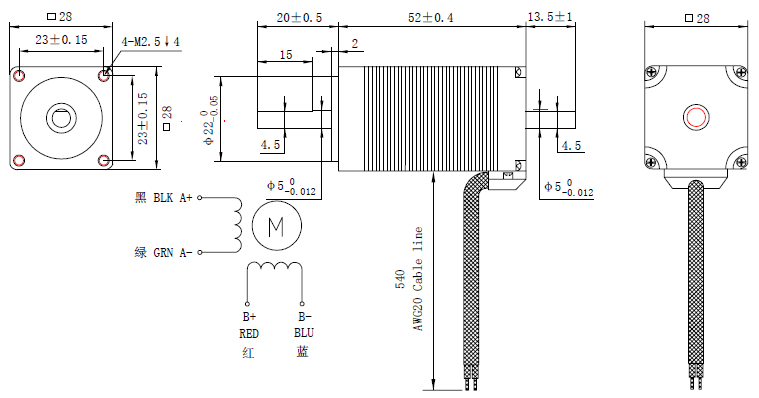

Physical Specification
- Frame Size: 28x28mm
- Body Length: 52mm
- Shaft Diameter: Φ5mm
- Front Shaft Length: 20mm
- D-cut Length: 15mm
- Rear Shaft Length: 13.5mm
- D-cut Length: 13.5mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.2kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.12 |
| Holding Torque(oz.in) | 17.04 |
| Rated Current(A) | 1.0 |
| Phase Resistance(ohm) | 4.1 |
| Phase Inductance(mH) | 4.0 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 28x28 |
| Body Length(mm) | 52 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Front Shaft Diameter(mm) | 5 |
| Front Shaft Length(mm) | 20 |
| Rear Shaft Diameter(mm) | 5 |
| Rear Shaft Length(mm) | 13.5 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.2 |
