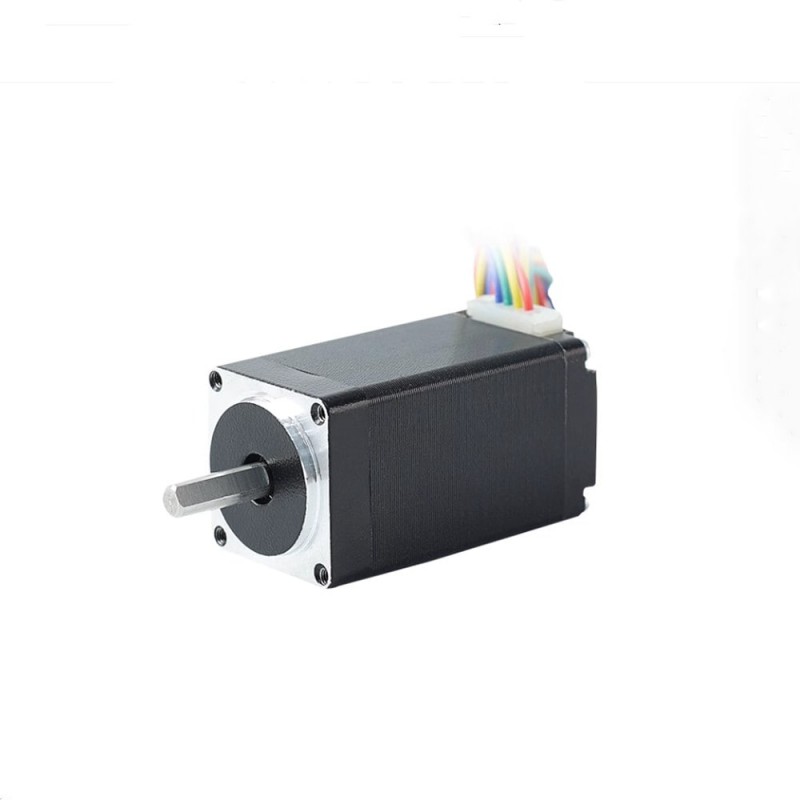

NEMA 11 Stepper Motor Bipolar 1.8deg 1.0A 0.12Nm/17.04oz.in 28x40mm 4 Wires
Electrical Specification
- Part Number: 28HB40-1004S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.12Nm/17.04oz.in
- Rated Current/phase: 1.0A
- Phase Resistance: 5.1ohms
- Inductance: 3.4mH
- Driving Voltage: 12-24VDC
Physical Specification
- Frame Size: 28x28mm
- Body Length: 40mm
- Shaft Diameter: Φ5mm
- Shaft Length: 17mm
- D-cut Length: 12mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.15kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.12 |
| Holding Torque(oz.in) | 17.04 |
| Rated Current(A) | 1.0 |
| Phase Resistance(ohm) | 5.1 |
| Phase Inductance(mH) | 3.4 |
| Physical Specification | |
| Frame Size(mm) | 28x28 |
| Body Length(mm) | 40 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 17 |
| No. of Leads | 4 |
| Lead Length(mm) | 300 |
| Weight(KG) | 0.15 |
