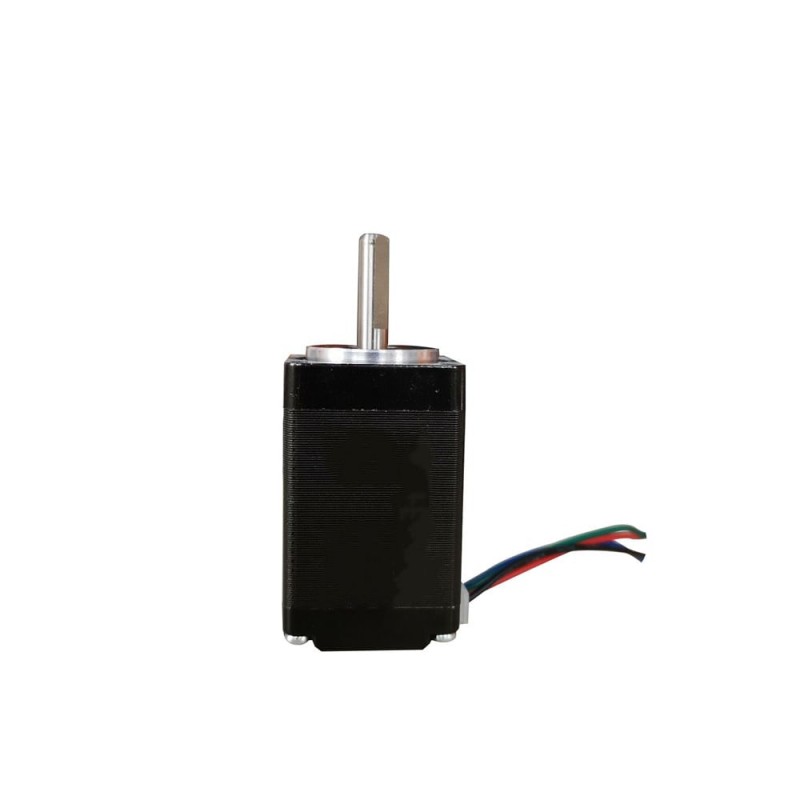

NEMA 11 Stepper Motor Bipolar 1.8deg 0.67A 0.095Nm/13.49oz.in 28x45mm 4 Wires
- Part Number: 28HS45-0674S
- Lead Time: In Stock
- Unit Price: $9.50
- Sales: 129
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This is bipolar NEMA 11 stepper motor with step angle 1.8deg and 45mm long body. It has 4 wires, each phase draws 0.67A with holding torque 0.095Nm/13.49oz.in. This motor is an ideal applicaiton for the dental equipment.
Electrical Specification
- Part Number: 28HS45-0674S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.095Nm/13.49oz.in
- Rated Current/phase: 0.67A
- Phase Resistance: 6.8ohms
- Inductance: 4.9mH
- Driving Voltage: 12-24VDC

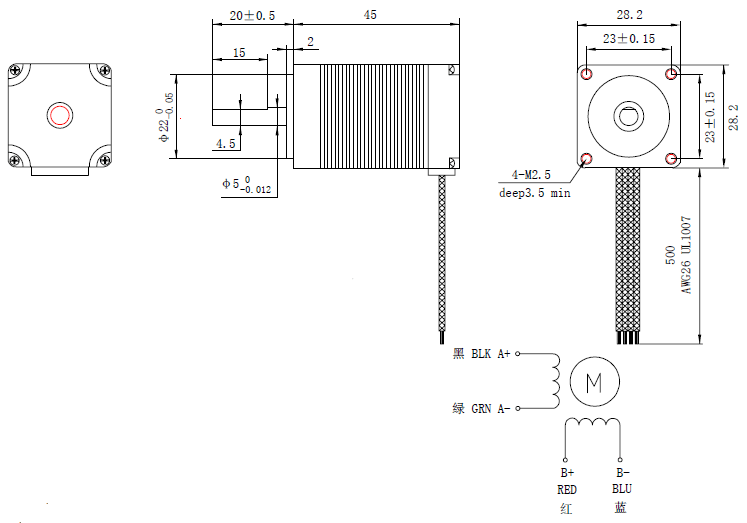

Physical Specification
- Frame Size: 28x28mm
- Body Length: 45mm
- Shaft Shape: D-cut
- Shaft Diameter: Φ5mm
- Shaft Length: 20mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.14kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.095 |
| Holding Torque(oz.in) | 13.49 |
| Rated Current(A) | 0.67 |
| Phase Resistance(ohm) | 6.8 |
| Phase Inductance(mH) | 4.9 |
| Physical Specification | |
| Frame Size(mm) | 28x28 |
| Body Length(mm) | 45 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.14 |
