NEMA 11 Non-captive Linear Actuator Stepper Motor 34mm Stack 0.75A Lead 4.8768mm Length 150mm
- Part Number: 28LS34-0754N-150L4.87
- Lead Time: Two Weeks
- Unit Price: $50.00
- Sales: 16
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 5

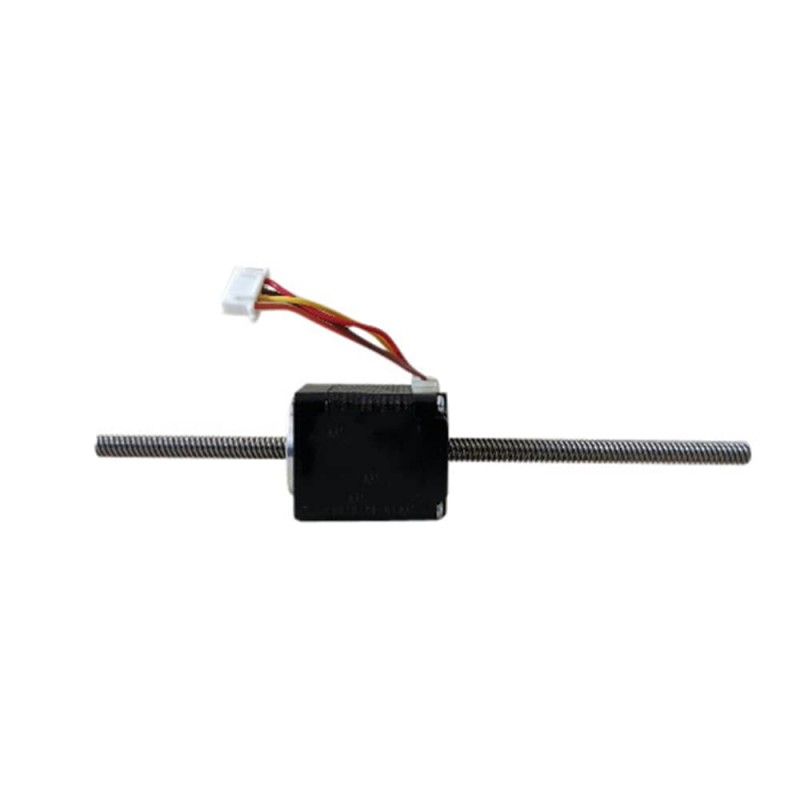

NEMA 11 Linear Actuator Stepper Lead 4.8768mm: This size 28mm linear actuator motor is a NEMA 11 Non-captive type lead screw linear actuator stepper motor with a single stack (34mm body length), 1.8 degree step angle and 0.75A rated current. It is integrated with a Φ5.56mm diameter, 150mm lead screw length, and the linear travel is 4.8768mm per revolution/0.024384mm per step.
Electrical Specification
- Part Number: 28LS34-0754N-150L4.87
- Motor Type: Non-captive
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.06Nm/8.52oz.in
- Rated Current/phase: 0.75A
- Phase Resistance: 6.5ohms
- Inductance: 3.2mH
- Driving Voltage: 12-24V

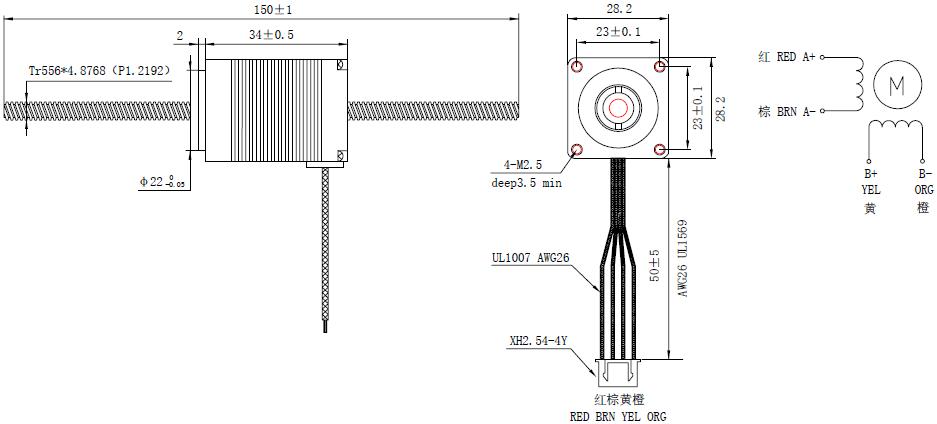

Physical Specification
- Frame Size: 28x28mm
- Body Length: 34mm
- Lead Screw Length: 150mm
- Lead Screw Diameter: Φ5.56mm
- Lead /Step: 0.024384mm
- Lead/Revolution: 4.8768mm
- Number of Leads: 4
- Lead Length: 50mm
- Weight: 0.18kg
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.06 |
| Holding Torque(oz.in) | 8.52 |
| Rated Current(A) | 0.75 |
| Frame Size(mm) | 28x28 |
| Stack Length(mm) | 34 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 150 |
| Lead Screw Diameter(mm) | 5.56 |
| Lead Travel/Revolution(mm) | 4.8768 |
| Lead Travel/Step(mm) | 0.024384 |
