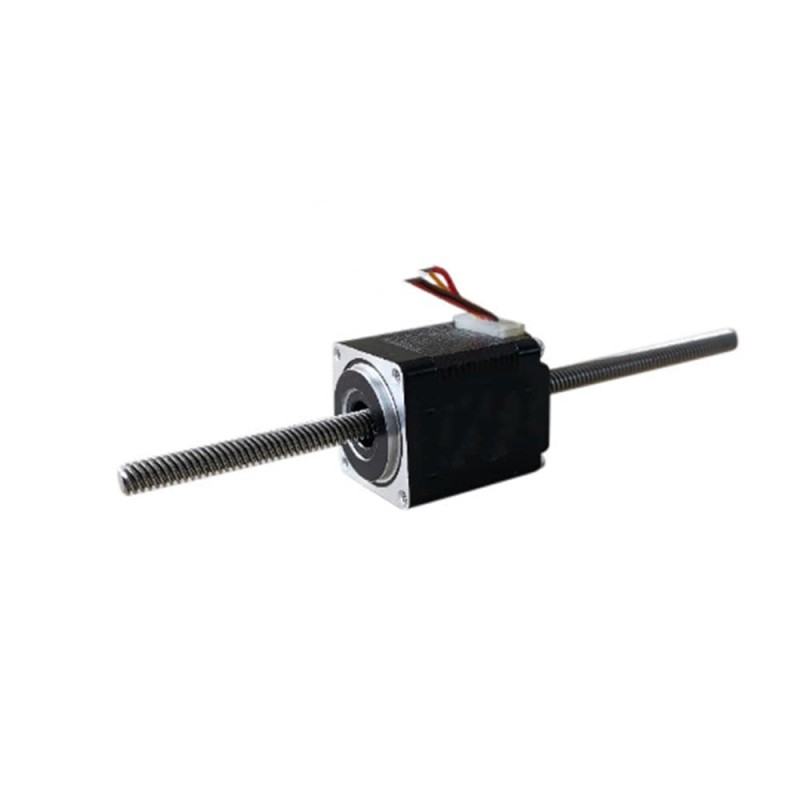

NEMA 11 Non-captive Linear Actuator Stepper Motor 34mm Stack 0.75A Lead 2mm Length 150mm
- Part Number: 28LS34-0754N-150L52
- Lead Time: In Stock
- Unit Price: $30.00
- Sales: 23
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 11 non-captive linear actuator stepper motor with body length 34mm is integrated with a diameter Φ5mm lead screw. The lead travel is 2mm per revolution or 0.01mm pre step
Electrical Specification
- Part Number: 28LS34-0754N-150L52
- Motor Type: Non-captive
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.06Nm/8.52oz.in
- Rated Current/phase: 0.75A
- Phase Resistance: 6.5ohms
- Inductance: 3.2mH
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: 28x28mm
- Body Length: 34mm
- Lead Screw Length: 150mm
- Lead Screw Diameter: Φ5mm
- Lead /Step: 0.01mm
- Lead/Revolution: 2mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.18kg
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.06 |
| Holding Torque(oz.in) | 8.52 |
| Rated Current(A) | 0.75 |
| Frame Size(mm) | 28x28 |
| Stack Length(mm) | 34 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 150 |
| Lead Screw Diameter(mm) | 5 |
| Lead Travel/Revolution(mm) | 2 |
| Lead Travel/Step(mm) | 0.01 |
