NEMA 11 Non-captive Linear Actuator Closed-loop Stepper Motor Stack 50mm Lead 2mm with 1000CPR Encoder
- Part Number: 28LS50-0804NE-300L52
- Lead Time: In Stock
- Unit Price: $85.00
- Sales: 6
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2

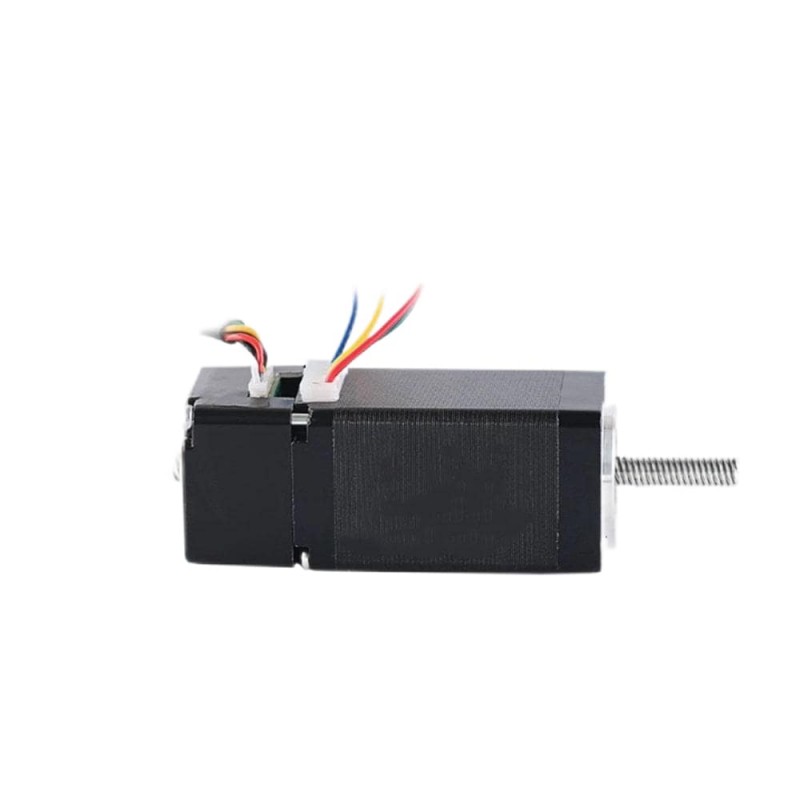

This size 28 Non-captive linear actuator with body part 50mm NEMA 11 closed loop stepper motor is integrated with a diameter Φ5mm lead screw length 300mm. And the lead travel is 2mm per revolution/0.01mm per step. A 1000cpr incremental encoder is assembled for closed loop servp control.
Electrical Specification
- Part Number: 28LS50-0804NE-300L52
- Motor Type: Non-captive
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.12Nm/17.04oz.in
- Rated Current/phase: 0.8A
- Driving Voltage: 12-24V

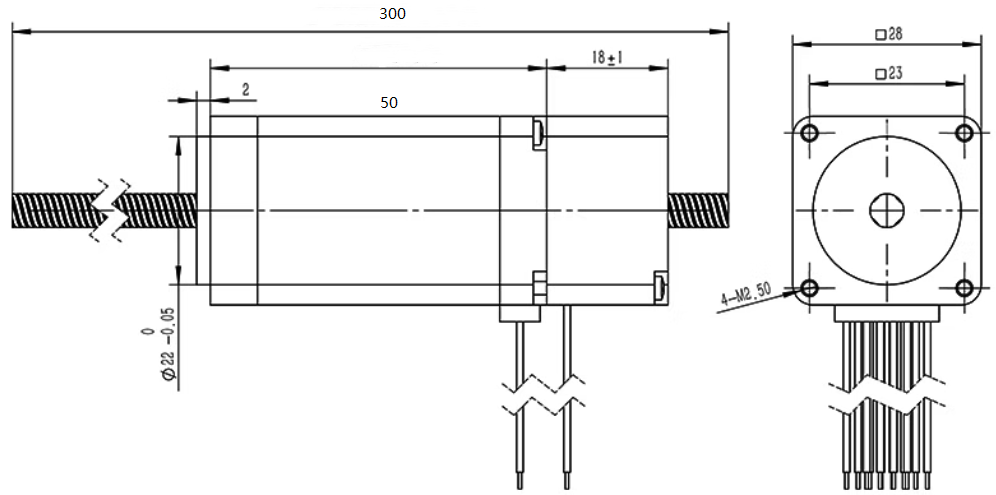

Physical Specification
- Frame Size: 28x28mm
- Body Length: 50mm
- Lead Screw Length: 300mm
- Lead Screw Diameter: Φ5mm
- Lead /Step: 0.01mm
- Lead/Revolution: 2mm
- Number of Leads: 4
- Lead Length: 300mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000CPR
- Encoder Signal Channels: 3
- No. of Leads: 8
- Lead Length: 300mm
- Supply Voltage: 5.0V
Contact Us
| Motor Specification | |
| Motor Type | Non-captive |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.12 |
| Holding Torque(oz.in) | 17.04 |
| Rated Current(A) | 0.8 |
| Frame Size(mm) | 28x28 |
| Stack Length(mm) | 50 |
| Encoder Specification | |
| Encoder Resolution(CPR) | 1000 |
| Encoder Type | Incremental |
| Supply Voltage(VDC) | 5.0 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 300 |
| Lead Screw Diameter(mm) | 5 |
| Lead Travel/Revolution(mm) | 2 |
| Lead Travel/Step(mm) | 0.01 |
