NEMA 11 Linear Actuator Stepper Motor 33mm Stack 1.0A Lead 2.54mm Screw Length 150mm
- Part Number: 28AI33-1004E-150L254
- Lead Time: In Stock
- Unit Price: $50.00
- Sales: 12
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

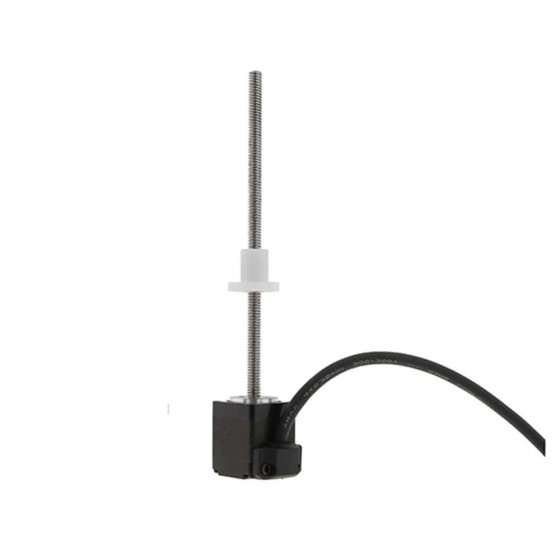

NEMA 11 Linear Actuator Stepper Lead 2.54mm: This size 28mm linear actuator motor is a NEMA 11 External type lead screw linear actuator stepper motor with a single stack (34mm body length), 1.8 degree step angle and 1.0A rated current. It is integrated with a Φ6.35mm diameter, 150mm lead screw length and a POM triangle screw nut, the linear travel is 2.54mm per revolution/0.0127mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.
Electrical Specification
- Part Number: 28AI33-1004E-150L254
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.06Nm/8.52oz.in
- Rated Current/phase: 1.0A
- Phase Resistance: 2.1ohms
- Inductance: 1.5mH
- Driving Voltage: 12-24V

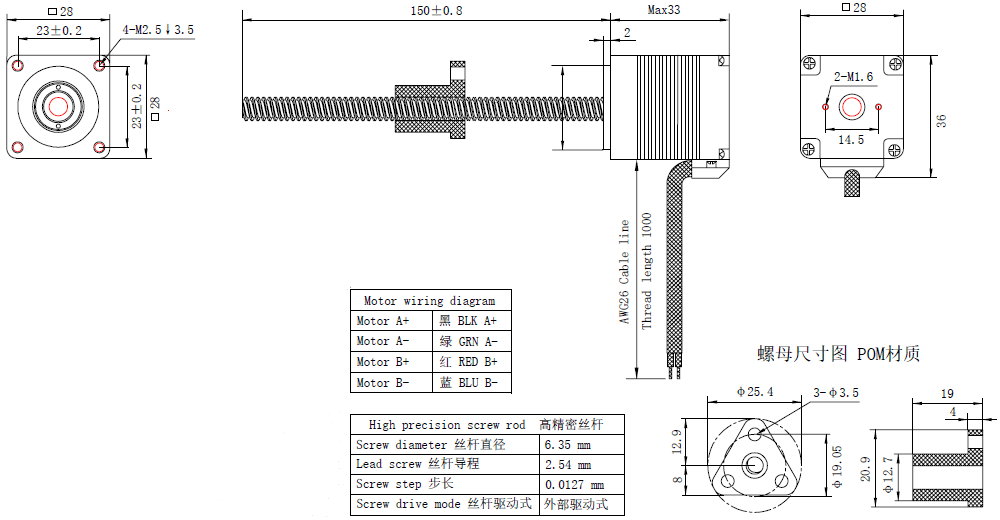

Physical Specification
- Frame Size: 28x28mm
- Body Length: 33mm
- Lead Screw Length: 150mm
- Lead Screw Diameter: Φ6.35mm
- Lead /Step: 0.0127mm
- Lead/Revolution: 2.54mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 0.18kg
Contact Us
| Motor Specification | |
| Motor Type | External |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.06 |
| Holding Torque(oz.in) | 8.52 |
| Rated Current(A) | 1.0 |
| Frame Size(mm) | 28x28 |
| Stack Length(mm) | 33 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 150 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Travel/Revolution(mm) | 2.54 |
| Lead Travel/Step(mm) | 0.0127 |
