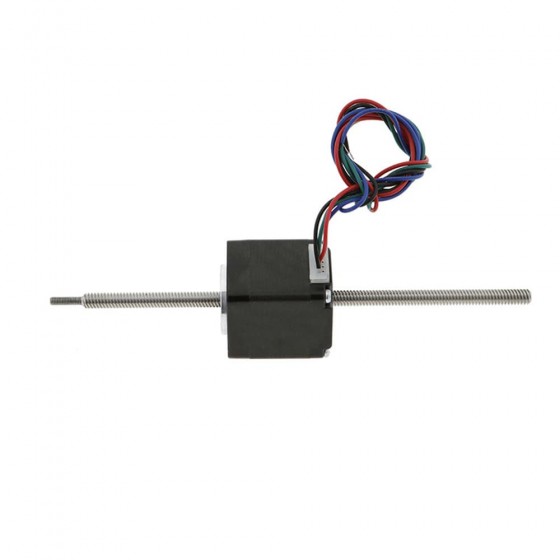

NEMA 11 Linear Actuator Non-captive Stepper Motor 34mm Stack 0.75A Lead 2mm Length 120mm
- Part Number: 28HS34-0754N-120N52M3
- Lead Time: In Stock
- Unit Price: $30.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This Non-captive linear actuator electric motor is one size 28mm NEMA 11 linear motion stepper motor with a 34mm body length, 1.8 degree step angle, and 0.75A rated current. It is integrated with a 5mm diameter lead screw & lead travel 2mm per revolution/0.01mm per step, and the lead screw length is 120mm with a M3 thread nose.
Electrical Specification
- Part Number: 28HS34-0754N-120N52M3
- Motor Type: Non-captive Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.07Nm(9.94oz.in)
- Rated Current/phase: 0.75A
- Driving Voltage: 12-24V

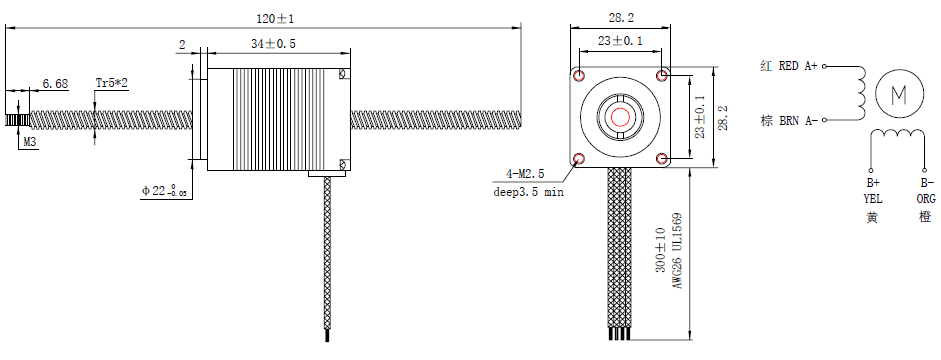

Physical Specification
- Frame Size: 28x28mm
- Motor Length: 34mm
- Lead Screw Length: 120mm
- Lead Screw Diameter: Φ5mm
- Lead Screw/Step: 0.01mm
- Lead Screw/Revolution: 2mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.15KG
Contact Us
| Motor Specification | |
| Motor Type | Non-captive Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.07 |
| Holding Torque(oz.in) | 9.94 |
| Rated Current(A) | 0.75 |
| Frame Size(mm) | 28x28 |
| Stack Length(mm) | 34 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 120 |
| Lead Screw Diameter(mm) | 5 |
| Lead Travel/Revolution(mm) | 2 |
| Lead Travel/Step(mm) | 0.01 |
