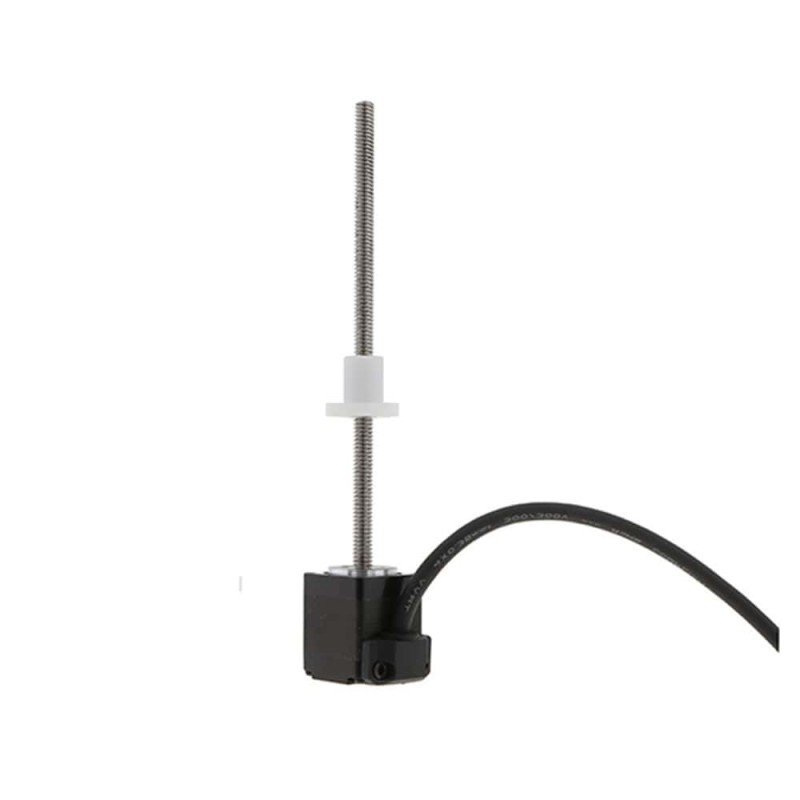

This external linear actuator electric motor is one size 28mm NEMA 11 linear motion stepper motor with a 33mm body length, 1.8 degree step angle, and 1.0A rated current. It is integrated with a 6.35mm diameter lead screw & lead travel 2.54mm per revolution/0.0127mm per step, a high quality POM screw nut, and the lead screw length is 150mm.
Electrical Specification
- Part Number: 28HS33-1004E-150N2.54
- Motor Type: External Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.07Nm(9.94oz.in)
- Rated Current/phase: 1.0A
- Driving Voltage: 12-24V

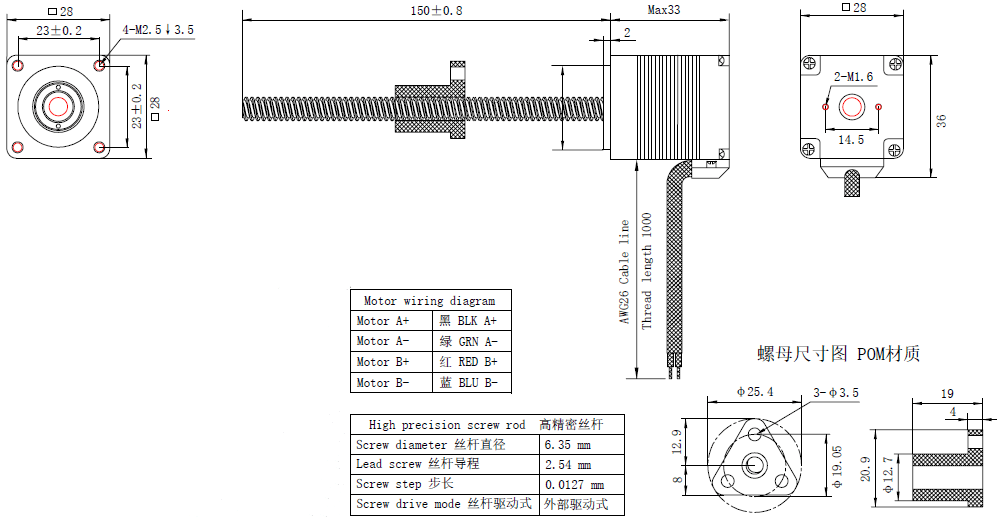

Physical Specification
- Frame Size: 28x28mm
- Motor Length: 33mm
- Lead Screw Length: 150mm
- Lead Screw Diameter: Φ6.35mm
- Lead Screw/Step: 0.0127mm
- Lead Screw/Revolution: 2.54mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 0.25KG
Contact Us
| Motor Specification | |
| Motor Type | External Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.07 |
| Holding Torque(oz.in) | 9.94 |
| Rated Current(A) | 1.0 |
| Frame Size(mm) | 28x28 |
| Stack Length(mm) | 33 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 150 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Travel/Revolution(mm) | 2.54 |
| Lead Travel/Step(mm) | 0.0127 |
