NEMA 11 External Linear Actuator Stepper Motor 34mm Stack 0.75A Lead 0.635mm Length 100mm
- Part Number: 28LS34-0754E-100L0.635
- Lead Time: In Stock
- Unit Price: $50.00
- Sales: 23
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

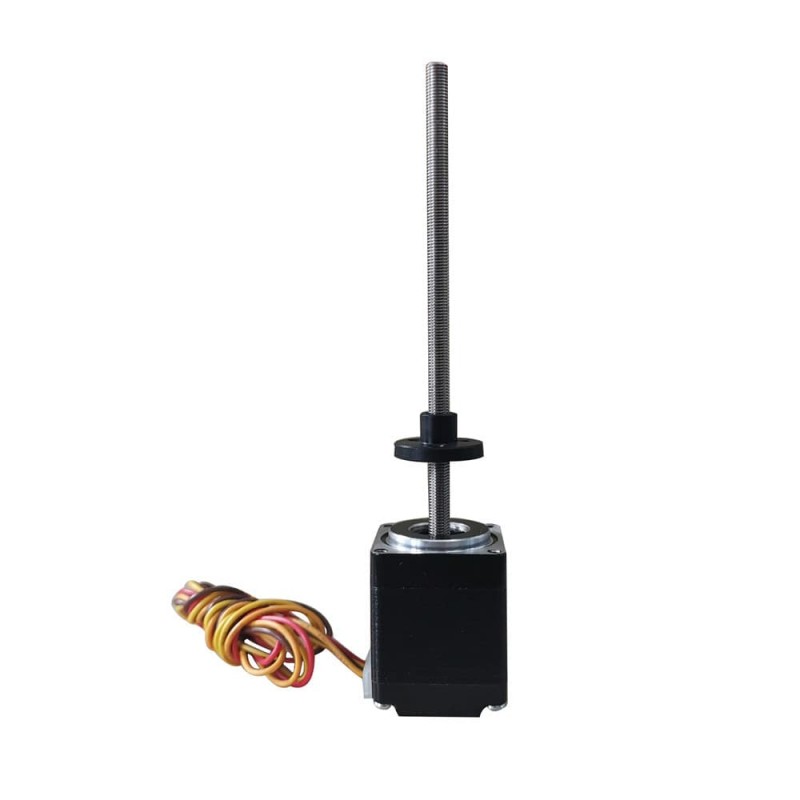

This size 28 external linear actuator NEMA 11 stepper motor with body length 34mm is integrated with a diameter Φ4.76mm lead screw. The lead travel is 0.635mm per revolution or 0.003175mm per step, and a POM screw nut moving along the threaded rod.
Electrical Specification
- Part Number: 28LS34-0754E-100L0.635
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipoalr: Bipolar
- Holding Torque: 0.06Nm/8.52oz.in
- Rated Current/phase: 0.75A
- Phase Resistance: 6.5ohms
- Inductance: 3.2mH
- Driving Voltage: 12-24V

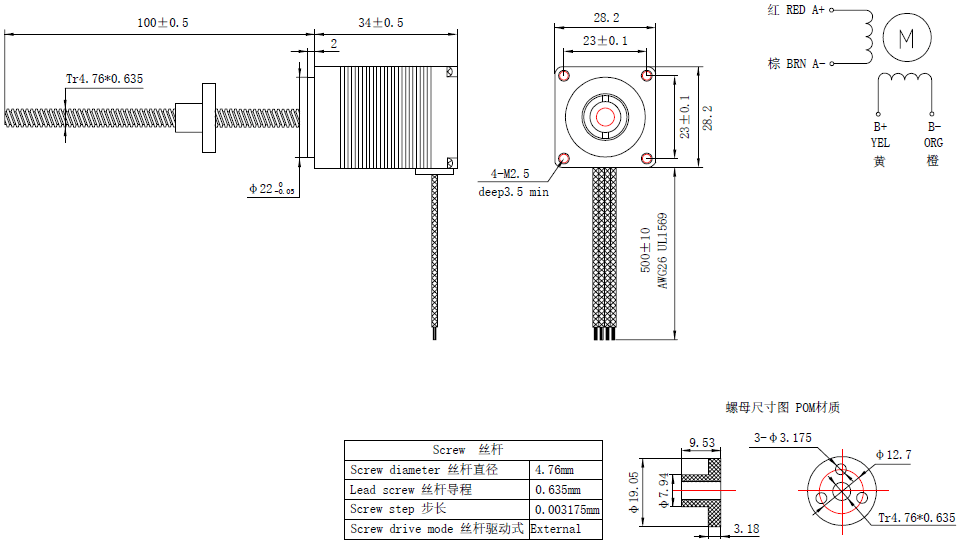

Physical Specification
- Frame Size: 28x28mm
- Body Length: 34mm
- Lead Screw Length: 100mm
- Lead Screw Diameter: Φ4.76mm
- Lead /Step: 0.003175mm
- Lead/Revolution: 0.635mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.18kg
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.06 |
| Holding Torque(oz.in) | 8.52 |
| Rated Current(A) | 0.75 |
| Frame Size(mm) | 28x28 |
| Stack Length(mm) | 34 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 100 |
| Lead Screw Diameter(mm) | 4.76 |
| Lead Travel/Revolution(mm) | 0.635 |
| Lead Travel/Step(mm) | 0.003175 |
