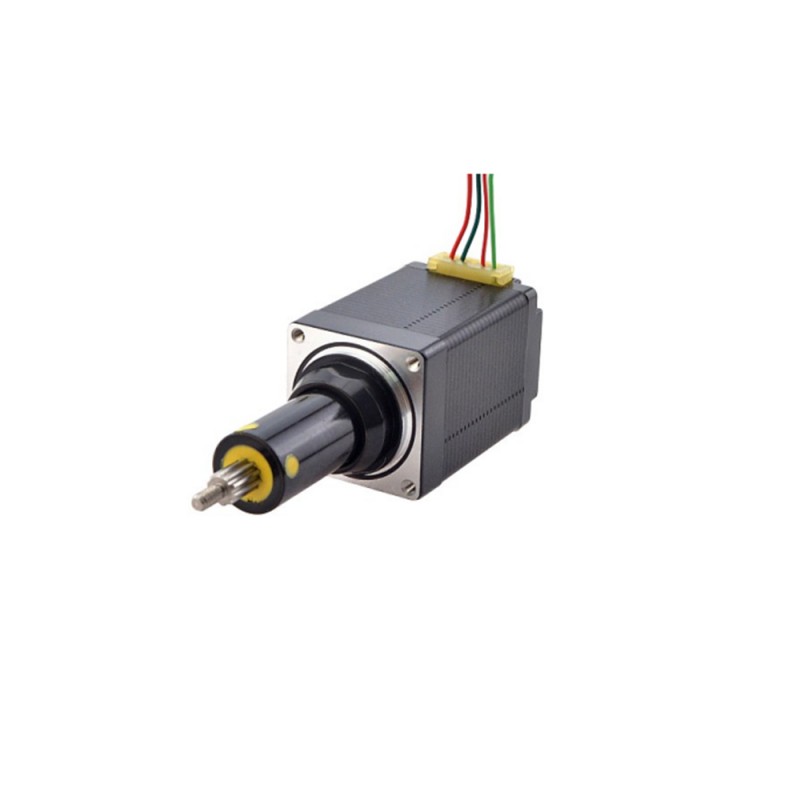

NEMA 11 Captive Linear Actuator Stepper Motor Single Stack 0.5A Lead 0.635mm Travel 12.7mm
- Part Number: 28AI32-0504C-1270
- Lead Time: One Week
- Unit Price: $85.00
- Sales: 19
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This Captive linear actuator electric motor is one size 28mm NEMA 11 linear motion stepper motor with a 32mm body length, 1.8 degree step angle, and 0.5A rated current. It is integrated with a 4.76mm diameter lead screw & lead travel 0.635mm per revolution/0.003175mm per step, and the travel distance is 12.7mm.
Electrical Specification
- Part Number: 28AI32-0504C-1270
- Motor Type: Captive Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.06Nm/8.52oz.in
- Rated Current/phase: 0.5A
- Driving Voltage: 12-24V

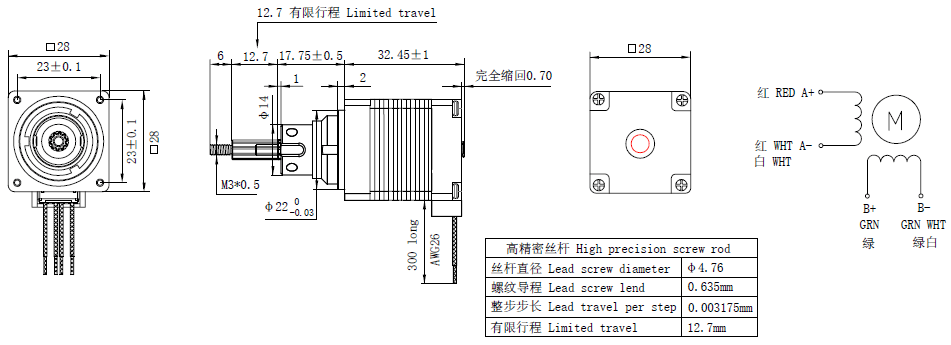

Physical Specification
- Frame Size: 28x28mm
- Motor Length: 32mm
- Lead Travel Distance: 12.7mm
- Lead Screw Diameter: Φ4.76mm
- Lead Screw/Step: 0.003175mm
- Lead Screw/Revolution: 0.635mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.2KG
Contact Us
| Motor Specification | |
| Motor Type | Captive Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.06 |
| Holding Torque(oz.in) | 8.52 |
| Rated Current(A) | 0.5 |
| Frame Size(mm) | 28x28 |
| Stack Length(mm) | 32 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Travel Distance(mm) | 12.7 |
| Lead Screw Diameter(mm) | 4.76 |
| Lead Travel/Revolution(mm) | 0.635 |
| Lead Travel/Step(mm) | 0.003175 |
