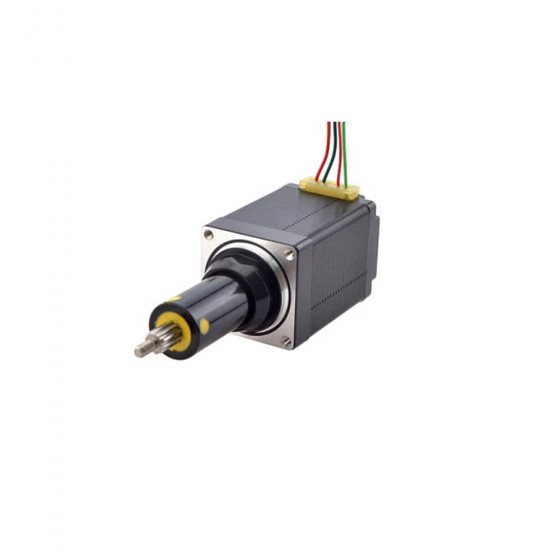

NEMA 11 Captive Linear Actuator Stepper Motor Double Stack 1.0A Lead 5.08mm Travel 25.4mm
- Part Number: 28AI44-1004C-2540
- Lead Time: One Week
- Unit Price: $85.00
- Sales: 7
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This Captive linear actuator electric motor is one size 28mm NEMA 11 linear motion stepper motor with a 44mm body length, 1.8 degree step angle, and 1.0A rated current. It is integrated with a 4.76mm diameter lead screw & lead travel 5.08mm per revolution/0.0254mm per step, and the travel distance is 25.4mm.
Electrical Specification
- Part Number: 28AI44-1004C-2540
- Motor Type: Captive Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.12Nm/17.04oz.in
- Rated Current/phase: 1.0A
- Driving Voltage: 12-24V

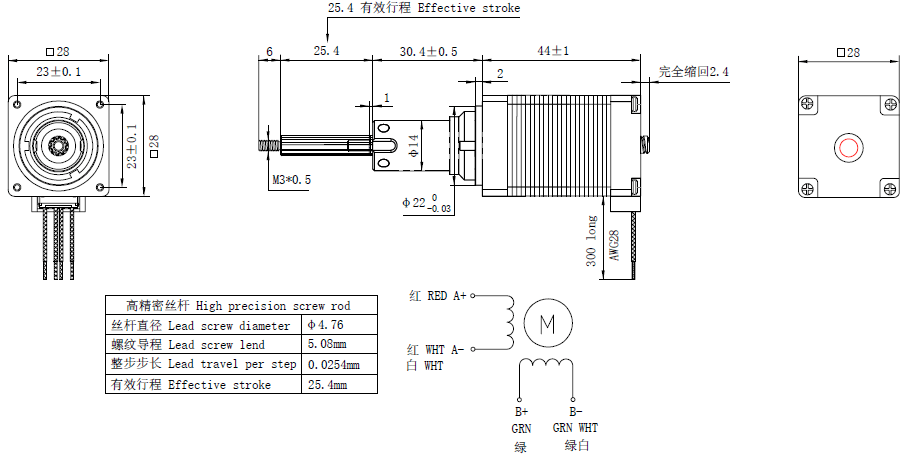

Physical Specification
- Frame Size: 28x28mm
- Motor Length: 44mm
- Lead Travel Distance: 25.4mm
- Lead Screw Diameter: Φ4.76mm
- Lead Screw/Step: 0.0254mm
- Lead Screw/Revolution: 5.08mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.3KG
Contact Us
| Motor Specification | |
| Motor Type | Captive Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.12 |
| Holding Torque(oz.in) | 17.04 |
| Rated Current(A) | 1.0 |
| Frame Size(mm) | 28x28 |
| Stack Length(mm) | 44 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Travel Distance(mm) | 25.4 |
| Lead Screw Diameter(mm) | 4.76 |
| Lead Travel/Revolution(mm) | 5.08 |
| Lead Travel/Step(mm) | 0.0254 |
