NEMA 11 Assembled Stepper Motor 0.07Nm/9.94oz.in 28x28x64mm 4 Wires
- Part Number: 28HS32-1004S2
- Lead Time: In Stock
- Unit Price: $50.00
- Sales: 6
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2

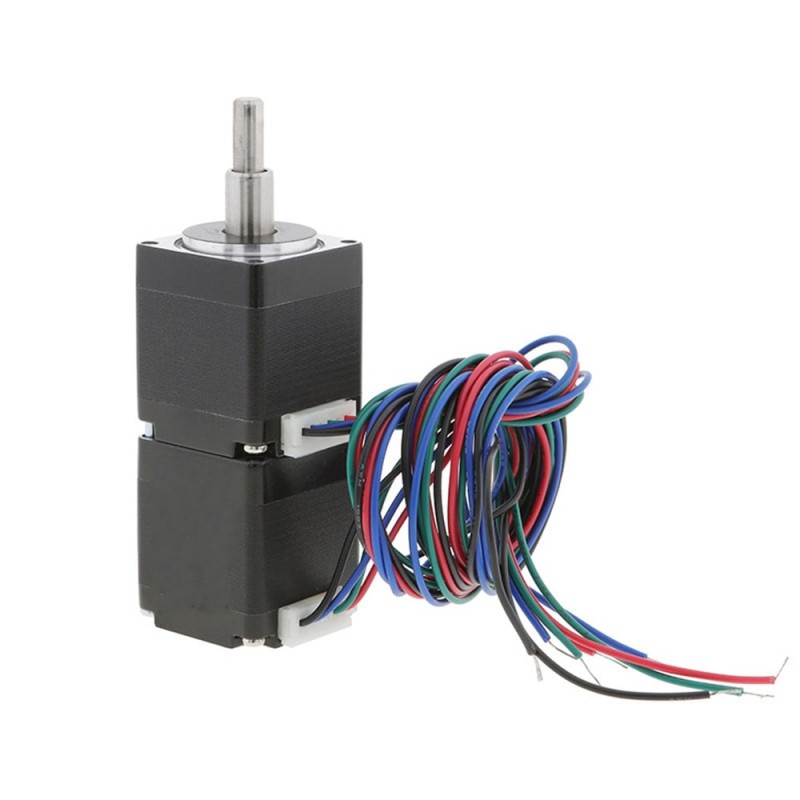

This NEMA 11 assembled stepper motor combines two small NEMA 11 stepper motors together so it has two output shafts: inner shaft and out shaft, which can achieve the motor's positive and negative rotation at the same time.
Electrical Specification
- Bi/Unipolar: Bipolar
- Step Angle: 1.8deg
- Holding Torque: 0.07Nm/9.94oz.in
- Rated Current/phase: 1.0A
- Driving Voltage: 12-24VDC

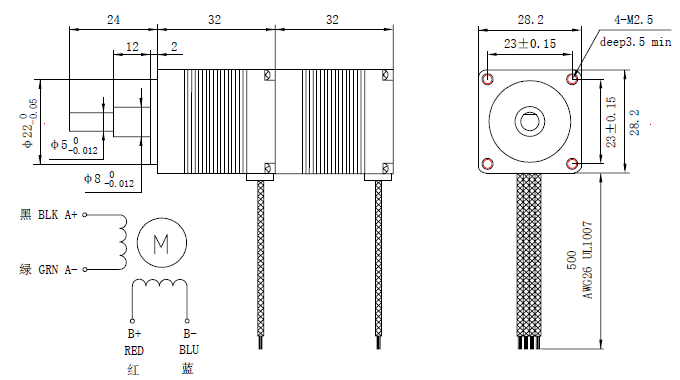

Physical Specification
- Frame Size: 28x28mm
- Body Length: 64mm
- Inner Shaft Diameter: Φ5mm
- Outer Shaft Diameter: Φ8mm
- Inner Shaft Length: 12mm
- Outer Shaft Length: 24mm
