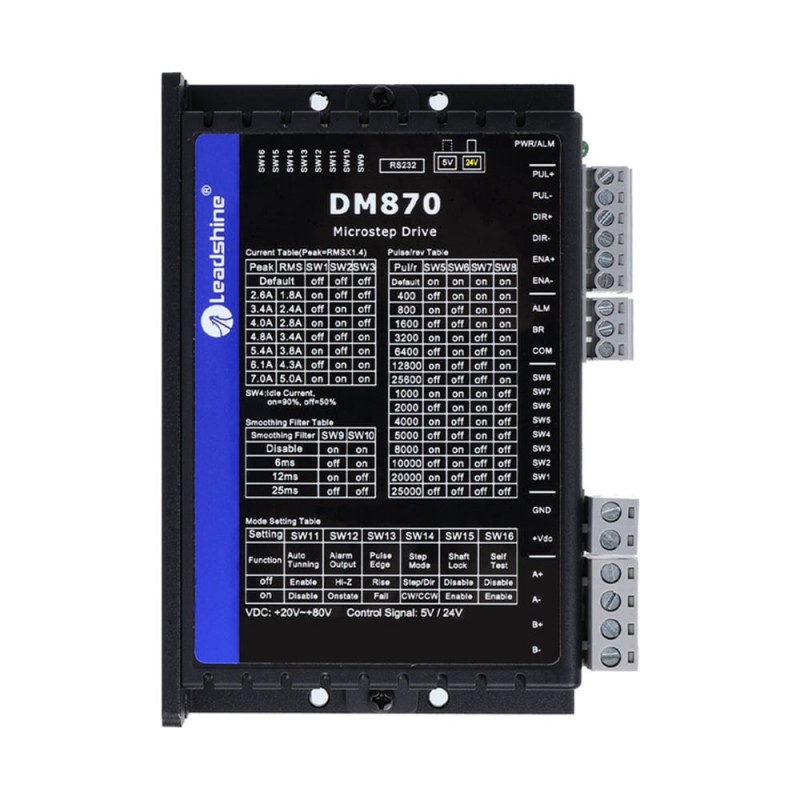

LEADSHINE DM870 Digital Stepper Motor Drive 0.5-7.0A 20-80VDC RS232 Port
Electrical Specifications:
- Control Model: Step & Direction or CW/CCW(double pulse)
- Output Peak Current: 0.5-7.0A(5.0RMS)
- Input Voltage: +20-80VDC(Typical 24-72VDC)
- Logic Signal Current: 7-16mA(Typical 10mA)
- Signal Voltage Input: 5V or 24V
- Pulse Input Frequency: 0-200kHz
- Isolation Resistance: 500MΩ
Operating Environment and other Specifications:
- Cooling: Natural Cooling or Forced cooling
- Environment: Avoid dust, oil fog and corrosive gases
- Ambient Temperature: 0-65℃
- Humidity: 40%-90%RH
- Operating Temperature: -0℃-50℃
- Storage Temperature: -20-65℃

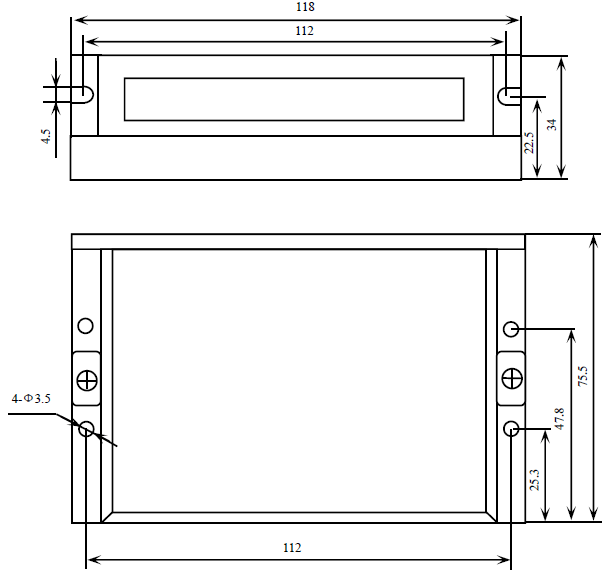

- Frame Size: 118x75.5x34mm
- Weight: 280g
Contact Us
| Drive Specification | |
| Phase Number | 2 |
| Input Voltage(VDC) | 20-80 |
| Output Current(A) | 0.5-7.0 |
| Micro-step Resolutions | 200-25600 |
| Encoder Feedback | No |
| Control Mode | Pulse |
| Dimensions(mm) | 75.5x34x118 |
| Weight(KG) | 0.28 |
