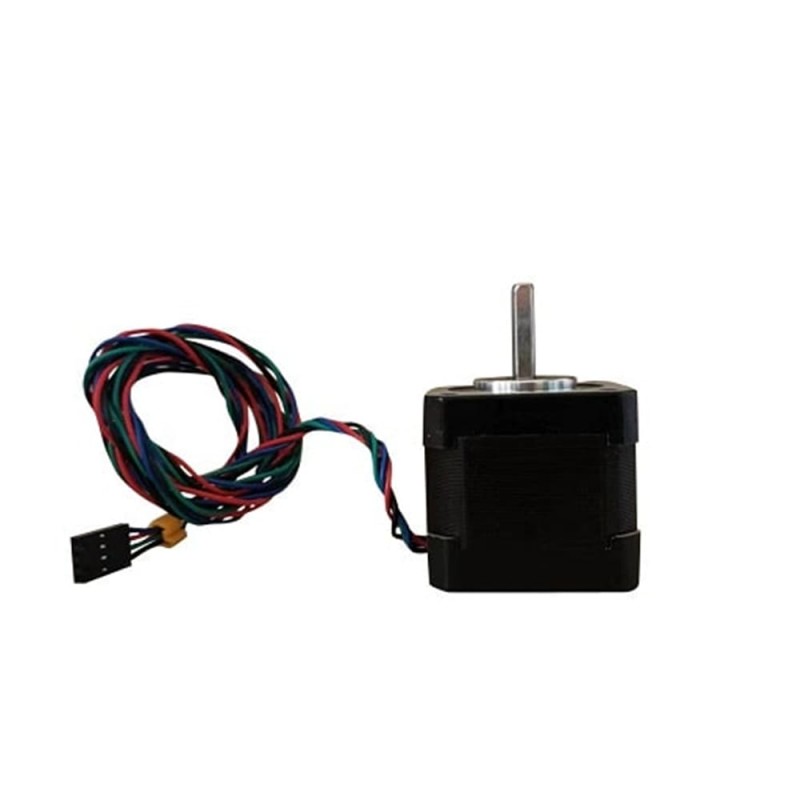

This high torque bipolar NEMA 17 stepper motor has 40mm body length and holding torque 0.5Nm/701oz.in with current 1.0A each phase.
Electrical Specification
- Part Number: 42HS40-1004S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.5Nm/71oz.in
- Rated Current/phase: 1.0A
- Phase Resistance: 6.5ohms
- Inductance: 13mH
- Driving Voltage: 12-24V

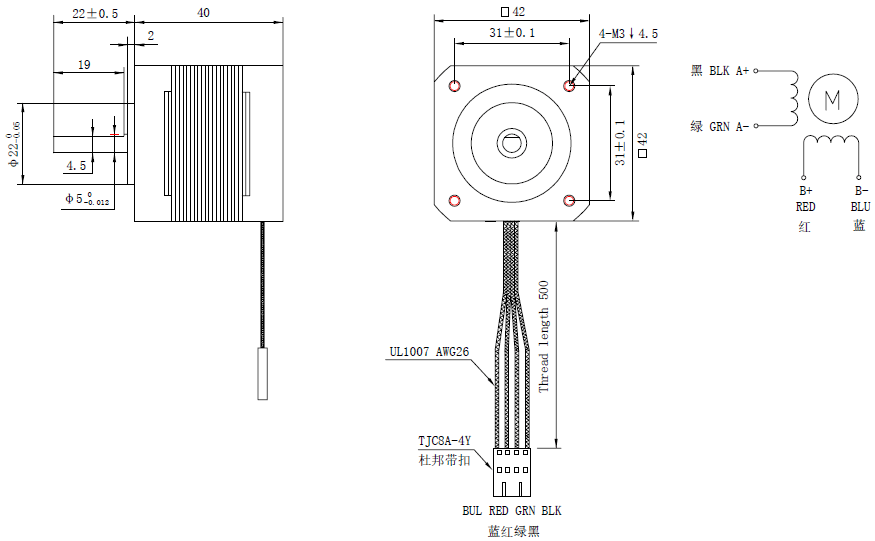

Physical Specification
- Frame Size: 42x42mm
- Body Length: 40mm
- Shaft Diameter: Φ5mm
- Shaft Length: 22mm
- D-cut Length: 19mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.3kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.5 |
| Holding Torque(oz.in) | 71 |
| Rated Current(A) | 1.0 |
| Phase Resistance(ohm) | 6.5 |
| Phase Inductance(mH) | 13.0 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 42x42 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.3 |
