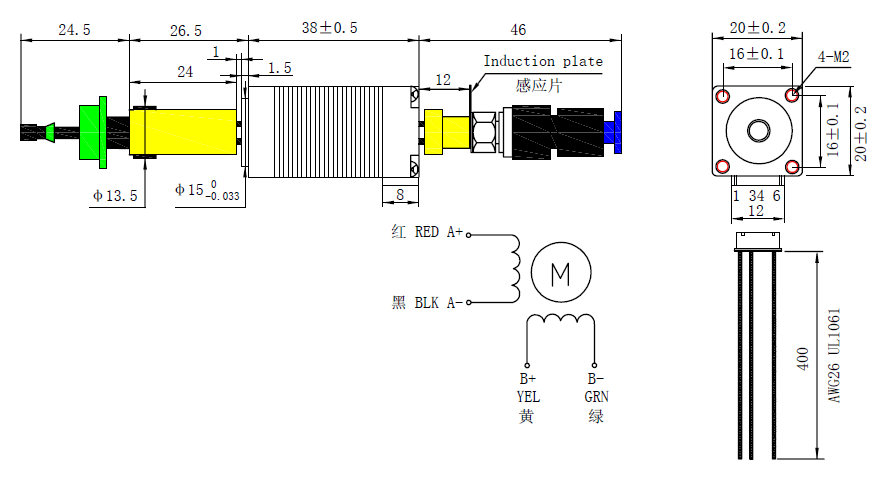

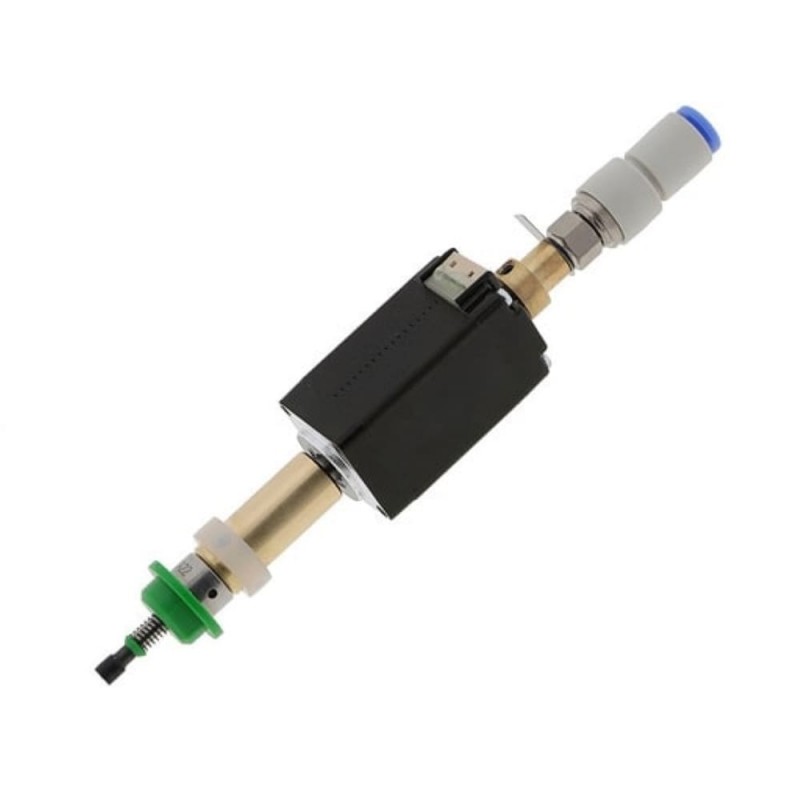

This is dual shaft NEMA 8 stepper motor with step angle 1.8deg and size 20x20x38mm. It has 4 wires with flexible harness cable, each phase draws 0.6A rated current with holding torque 0.04Nm/5.68oz.in. A JUKI nozzle & sensor chip assembled makes this motor become an ideal solution to the SMT machines.
Specifications:
