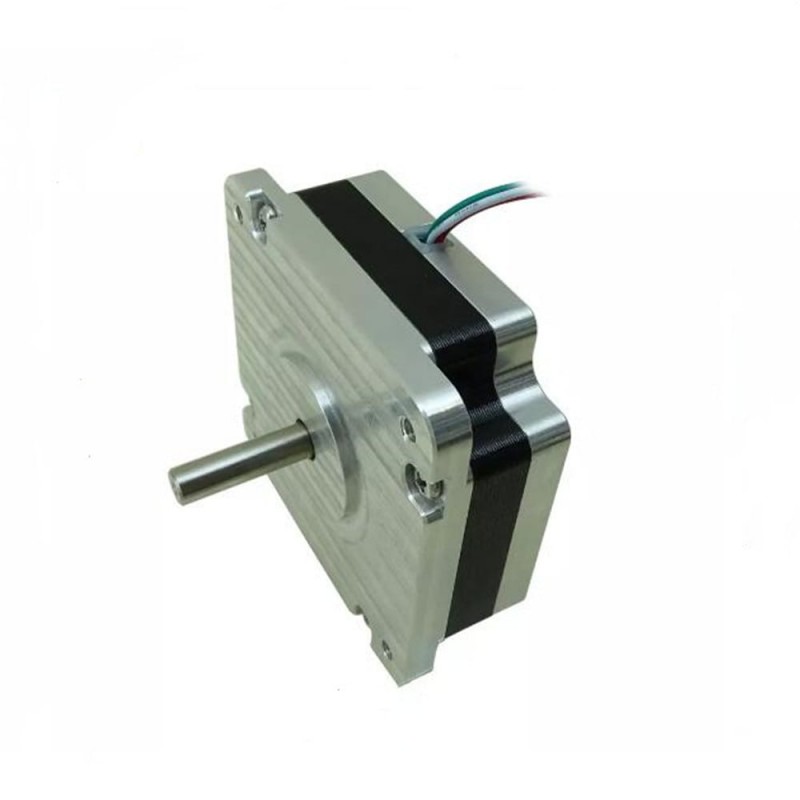

This NEMA 34 flat stepper motors have one ultra thin body 31mm and 3 wires, each phase drawing current 2.0A with holding torque 1.45Nm/205.9oz.in.
Electrical Specification
- Part Number: 86HT31-2003S
- Step Angle: 1.2deg
- Phase Number: 3
- Holding Torque: 1.45Nm(205.9oz.in)
- Rated Current/phase: 2.0A
- Phase Resistance: 2.5ohms
- Inductance: 7.5mH
- Driving Voltage: 24-72V

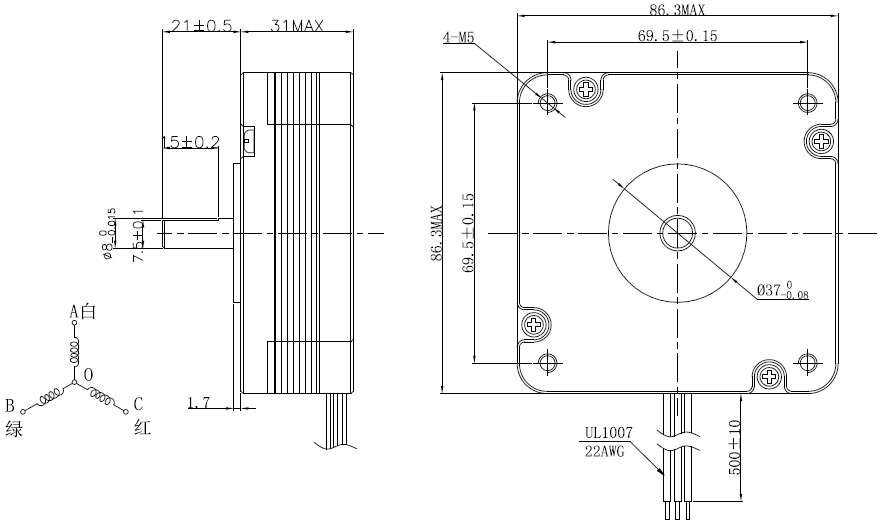

Physical Specification
- Frame Size: 86x86mm
- Body Length: 31mm
- Shaft Type: D-cut
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 3
- Lead Length: 500mm
- Weight: 0.8kg
Contact Us
| Electrical Specification | |
| Phase Number | 3 |
| Step Angle(°) | 1.2 |
| Holding Torque(Nm) | 1.45 |
| Holding Torque(oz.in) | 205.9 |
| Rated Current(A) | 2.0 |
| Phase Resistance(ohm) | 2.5 |
| Phase Inductance(mH) | 7.5 |
| Driving Voltage(VDC) | 24-72 |
| Physical Specification | |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 31 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| No. of Leads | 3 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.8 |
