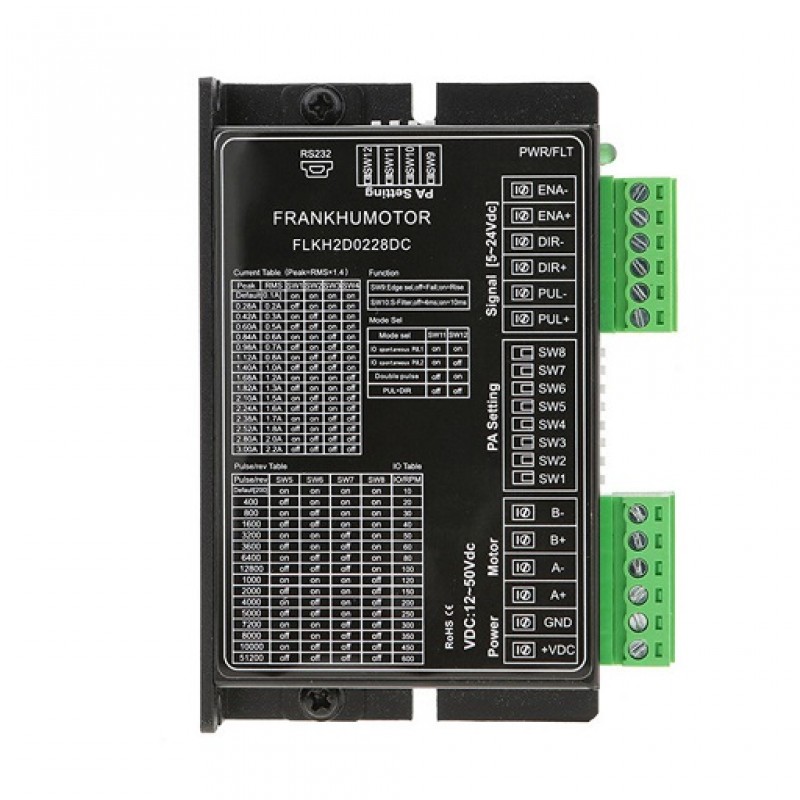

This stepper drive is definitely capable of power wide range of stepper motors of NEMA 6, 8, 11, 14, 16 and 17. And it also has built with an internal spontaneous pulser already and supports a wide speed range of 10-600RPM, which more easily drive the motor.
Key Features
- CE certified and RoHS compliant
- 5-24V logic input voltage
- Pulse response frequency up to 500KHz(factory default 200KHz)
- Pulse & Direction(PUL/DIR) or CW/CCW(double pulse) control

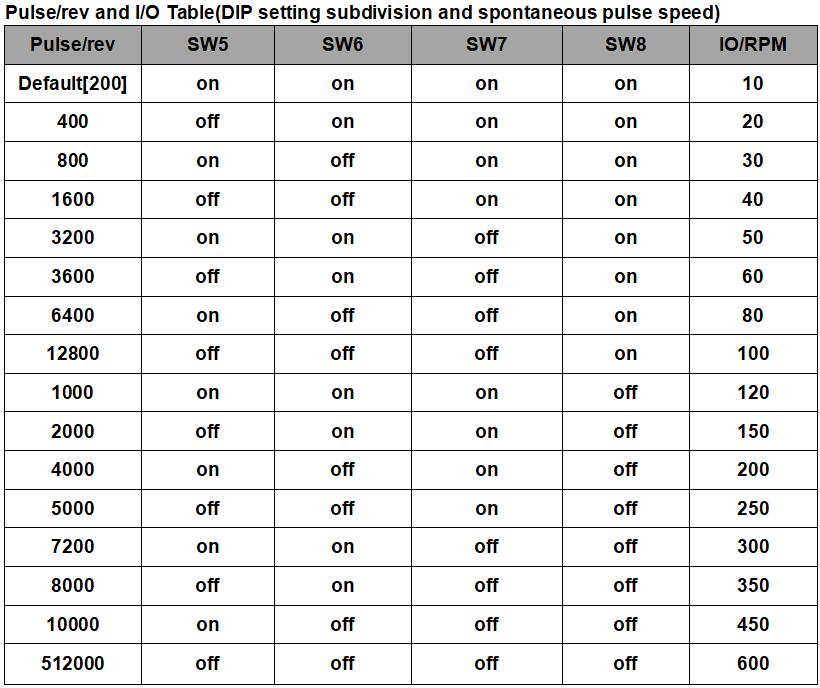

- I/O internal spontaneous pulse, I/O speed control 10-600RPM
- RS232 debugging interface
- Auto-tuning to match wide-range NEMA 6, 8, 11, 14, 16, 17 stepper motors

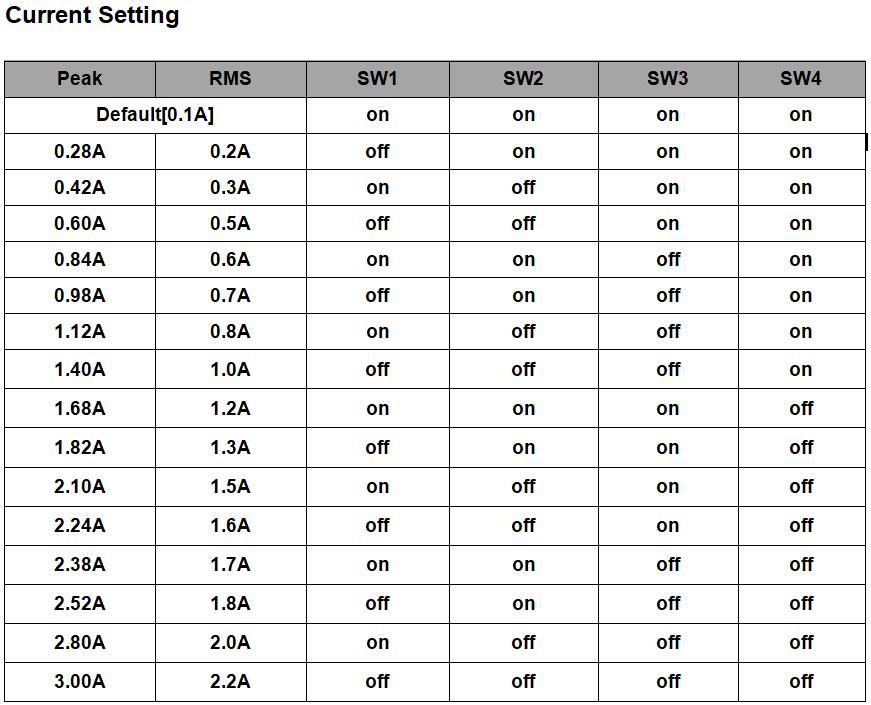

- Output Current: 0.18-3.0A(2.2RMS)
- Input Voltage: +12-50VDC(Typical 12-24VDC)
- Logic Signal Current: 6-16mA(Typical 10mA)
- Pulse Input Frequency: 0-200kHz
- Cooling: Natural cooling or forced cooling
- Ambient Temperature: 0℃-50℃
- Humidity: 40%RH-90%RH
- Operating Temperature: 0℃-50℃
- Storage Temperature: -20℃-65℃
- Weight: Approx. 0.2kg(8.8oz)
Contact Us
| Drive Specification | |
| Phase Number | 2 |
| Input Voltage(VDC) | 12-48 |
| Output Current(A) | 0.1-2.2 |
| Micro-step Resolutions | 200-51200 |
| Encoder Feedback | No |
| Control Mode | Pulse |

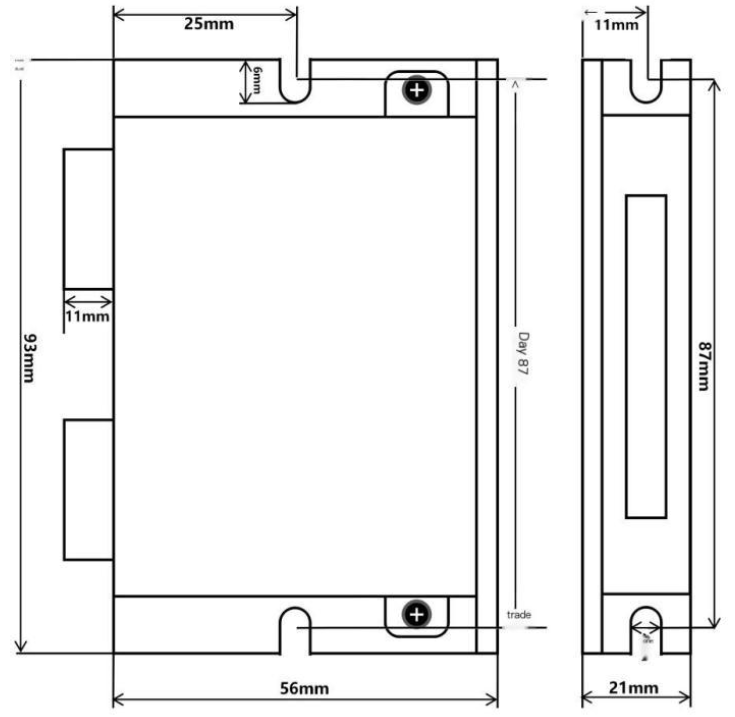

| Dimensions(mm) | 56x21x93 |
| Weight(KG) | 0.2 |
