CNC Stepper Motor NEMA 51 3 Phase 1.2deg 6.8A 50Nm/7100oz.in 130x283mm Φ19mm Keyway Shaft
- Part Number: 130AI283-6803S
- Lead Time: One Week
- Unit Price: $280.00
- Sales: 6
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This large electric dc motor is a 3 Phase NEMA 51 stepper motor with 1.2degree step angle/300 steps per revolution & size 130x283mm, which can generates a strong torque 50Nm/7100oz.in and 0-1500RPM.
Electrical Specification
- Part Number: 130AI283-6803S
- Phase Number: 3
- Step Angle: 1.2deg
- Holding Torque: 50Nm/7100oz.in
- Rated Current/phase: 6.8A
- Phase Resistance: 0.99ohms
- Inductance: 18.3mH
- Driving Voltage: 110-220VAC

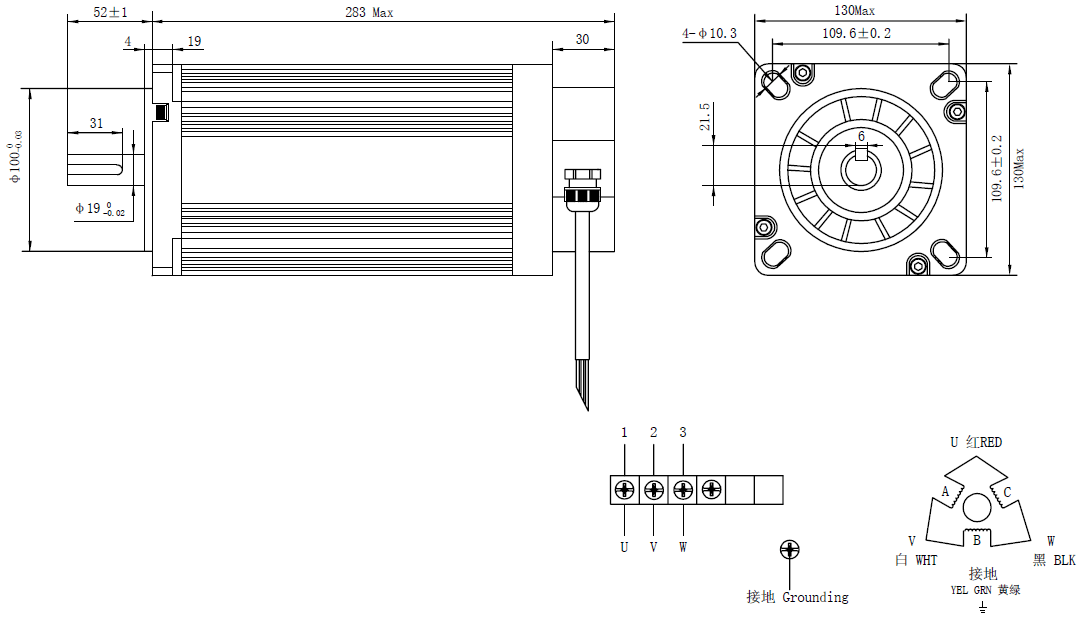

Physical Specification
- Frame Size: 110x110mm
- Body Length: 283mm
- Shaft Diameter: Φ19mm
- Shaft Length: 52mm
- Keyway Length: 31mm
- No. of Leads: 3
- Lead Length: 3000mm
- Weight: 22kg
Contact Us
| Electrical Specification | |
| Phase Number | 3 |
| Step Angle(°) | 1.2 |
| Holding Torque(Nm) | 50 |
| Holding Torque(oz.in) | 7100 |
| Rated Current(A) | 6.8 |
| Phase Resistance(ohm) | 0.99 |
| Phase Inductance(mH) | 18.3 |
| Driving Voltage(VAC) | 110-220 |
| Physical Specification | |
| Frame Size(mm) | 130x130 |
| Body Length(mm) | 283 |
| Shaft Type | Keyway |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 52 |
| No. of Leads | 3 |
| Lead Length(mm) | 500 |
| Weight(KG) | 22 |
