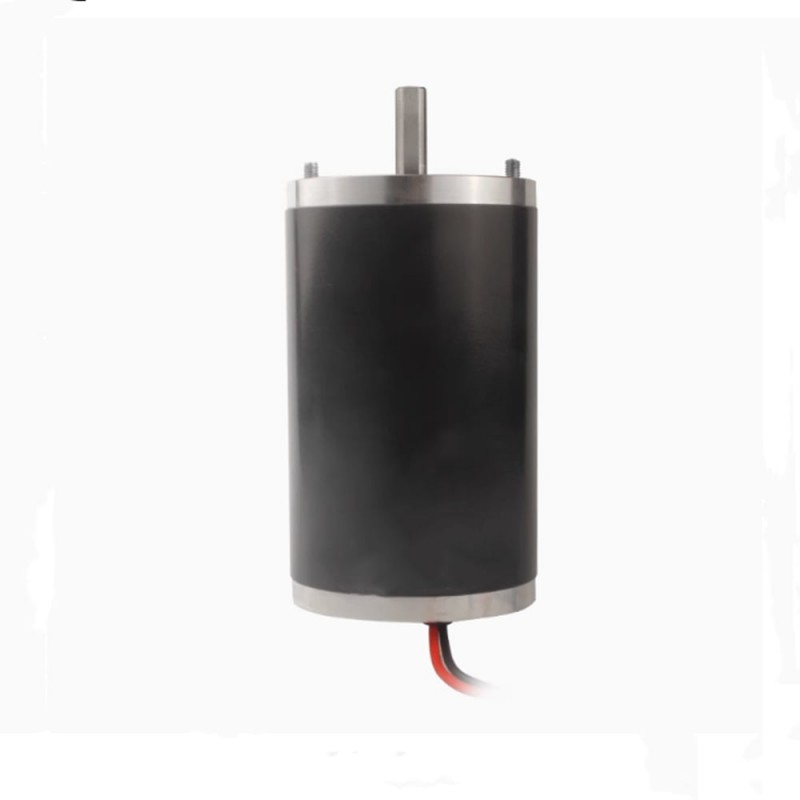

This size 77mm electric motor is a standard 12 voltage brushed DC motor. It generates a high power 68W and a torque 0.2Nm at 2450RPM.
Specifications
- Part Number: 77HS128-1220
- Rated Voltage: 12V
- Rated Curent: 5.6A
- Rated Power: 64W
- No-load Speed: 3000RPM
- Rated Speed: 2450RPM
- Rated Torque: 0.2Nm
- Insulation Class: B
- Frame Size: Φ77mm
- Motor Length: 128mm
- Shaft Diameter: Φ10mm
- Shaft Length: 28mm
- Number of Leads: 2
- Lead Length: 315mm
- Weight: 2.0kg
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushed |
| Rated Voltage(VDC) | 12 |
| Rated Current(A) | 65.6 |
| Rated Power(W) | 68 |
| Rated Torque(Nm) | 0.2 |
| Rated Speed(RPM) | 2450 |
| No-load Speed(RPM) | 3000 |
| Insulation Class | B |
| Frame Size(mm) | Φ77 |
| Body Length(mm) | 128 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 25 |
| Weight(KG) | 2 |
