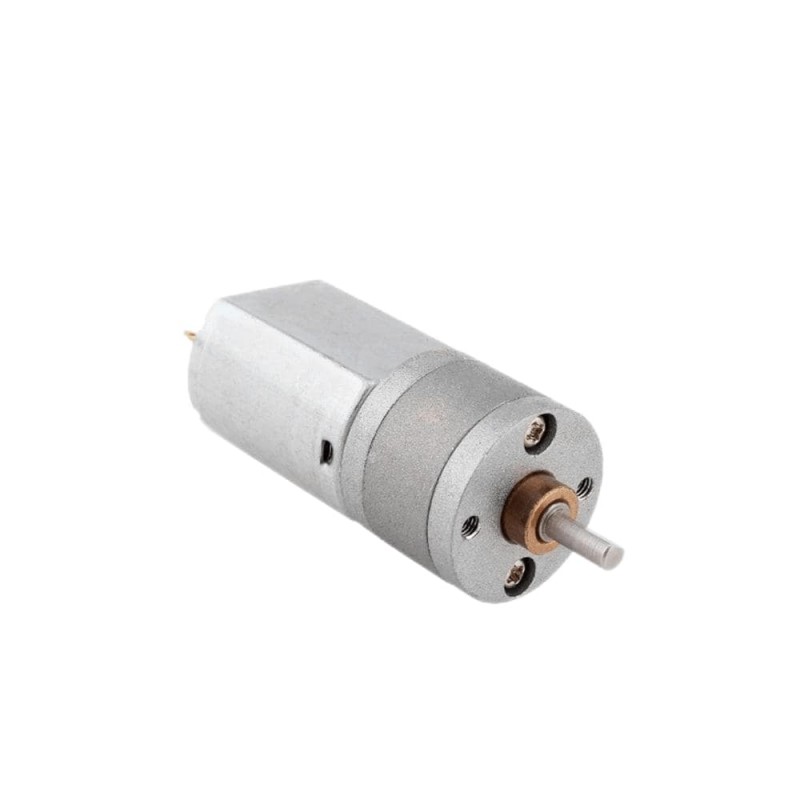

6V 23RPM 0.2Nm Φ20mm Geared Brushed DC Motor 195:1 Planetary Gearbox
- Part Number: 20AI25-6V-PG195
- Lead Time: In Stock
- Unit Price: $15.00
- Sales: 8
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This small 20AI25-PG series dc geared motor is a 6V diameter Φ20mm round brushed intagrated with a size 20mm round planetary gearbox. It leads to speed range of 3RPM to 1500RPM and holding torque upto 0.4Nm. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Part Number: 20AI25-6V-PG195
- Rated Voltage: 6VDC
- Rated Power: 0.4W
- Reduction Ratio:195:1
- Rated Torque: 0.2Nm
- No-load Speed: 23RPM
- Rated Speed: 17RPM
- Rated Current: 0.16A
- Insulation Class: B
- Body Length: 43.8mm
- Shaft Diameter: Φ4mm
- Shaft Length: 10.5mm
- D-cut Length: 7mm
- Weight: 0.06KG
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushed |
| Rated Voltage(VDC) | 6 |
| Rated Power(W) | 0.4 |
| Rated Torque(Nm) | 0.2 |
| Rated Speed(RPM) | 17 |
| No-load Speed(RPM) | 23 |
| Frame Size(mm) | Φ20 |
| Body Length(mm) | 43.8 |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 10.5 |
| Weight(KG) | 0.06 |
L=18.8mm
