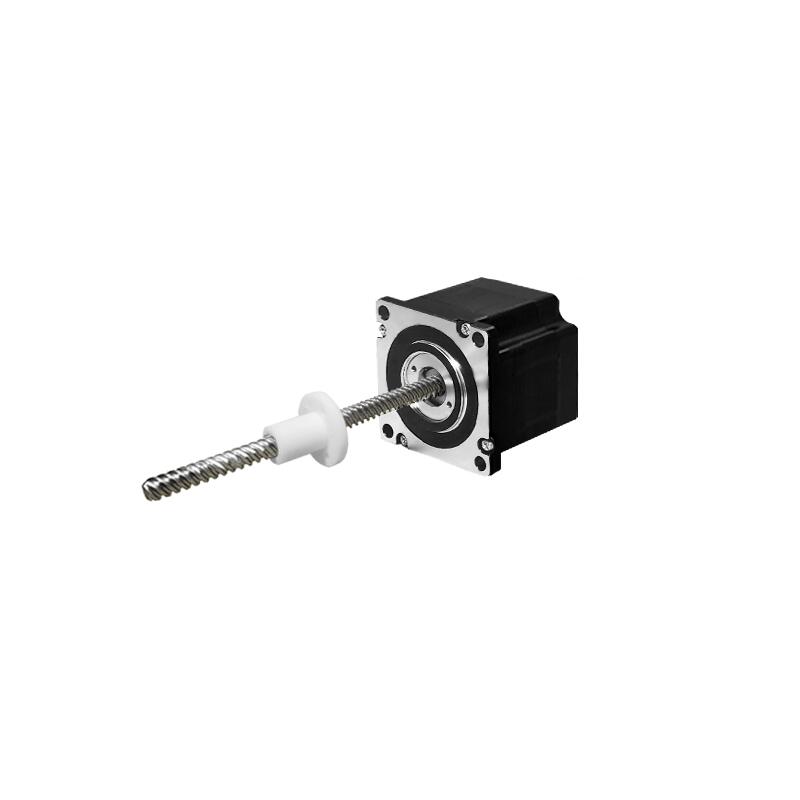

60000 Series NEMA 24 Linear Actuator Stepper Motor External Single Stack Lead 25.4mm Length 150mm
- Part Number: 60PE47-3004S-150F13
- Lead Time: Four Weeks
- Unit Price: $140.00
- *Ship from China
This linear motion motor is 60000 series size 24 stepper motor with external linear actuator type. The motor part has single stack length 47mm, step angle 1.8 degree and bipolar 4 wires connection. It works with a diameter Φ9.525mm, lead screw length of 150mm and the linear travel 0.127mm per step. Compared to NEMA 23 linear stepper motor, NEMA 24 has a stronger thrust output with same speed.
Electrical Specification
Part Number: 60PE47-3004S-150F13
Motor Type: External
Step Angle: 1.8deg
Bipolar/Unipolar: Bipolar
Rated Current/phase: 3.0A
Phase Resistance: 0.6ohms
Inductance: 1.6mH
Driving Voltage: 24-48VDC
Physical Specification
Frame Size: 60x60mm
Body Length: 47mm
Lead Screw Length: 150mm
Lead Screw Diameter: Φ9.525mm
Lead Travel/Revolution: 25.4mm
Lead Travel/Step: 0.127mm
Number of Leads: 4
Lead Length: 300mm
Weight: 680g
Motor Connection
Contact Us
| Motor Specification | |
| Motor Type | External |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Rated Current(A) | 3.0 |
| Frame Size(mm) | 60x60 |
| Stack Length(mm) | 47 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 150 |
| Lead Screw Diameter(mm) | 9.525 |
| Lead Travel/Revolution(mm) | 25.4 |
| Lead Travel/Step(mm) | 0.127 |
