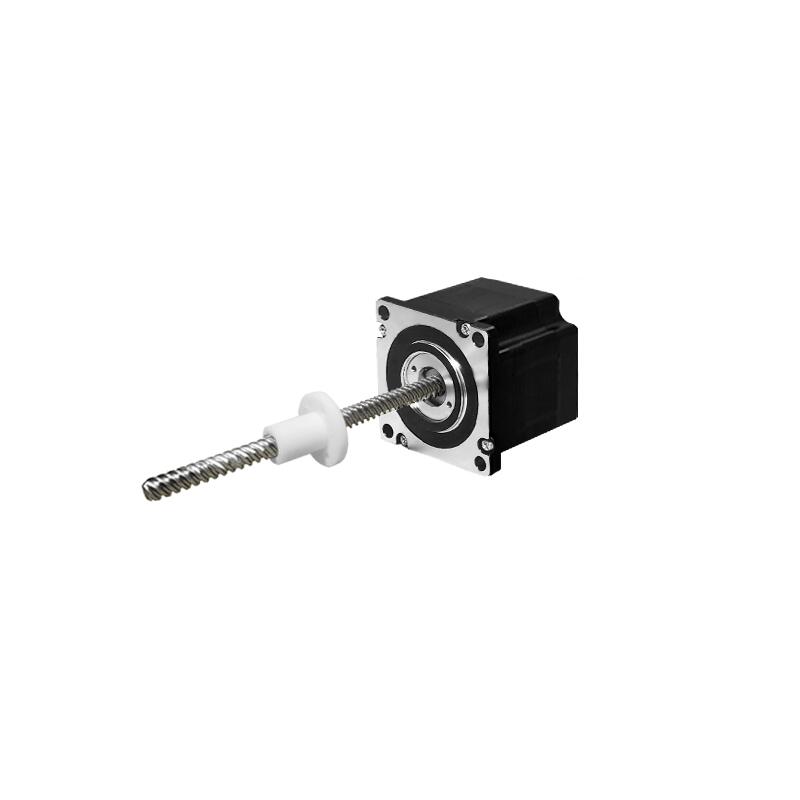

60000 Series NEMA 24 Linear Actuator Stepper Motor External Double Stack Lead 2.54mm Length 150mm
- Part Number: 60PE68-4004S-150F4
- Lead Time: Four Weeks
- Unit Price: $150.00
- *Ship from China
This linear motion motor is 60000 series size 24 stepper motor with external linear actuator type. The motor part has double stack length 68mm, step angle 1.8 degree and bipolar 4 wires connection. It works with a diameter Φ9.525mm, lead screw length of 150mm and the linear travel 0.0127mm per step. Compared to NEMA 23 linear stepper motor, NEMA 24 has a stronger thrust output with same speed.
Electrical Specification
Part Number: 60PE68-4004S-150F4
Motor Type: External
Step Angle: 1.8deg
Bipolar/Unipolar: Bipolar
Rated Current/phase: 4.0A
Phase Resistance: 0.6ohms
Inductance: 1.9mH
Driving Voltage: 24-48VDC
Physical Specification
Frame Size: 60x60mm
Body Length: 68mm
Lead Screw Length: 150mm
Lead Screw Diameter: Φ9.525mm
Lead Travel/Revolution: 2.54mm
Lead Travel/Step: 0.0127mm
Number of Leads: 4
Lead Length: 300mm
Weight: 1080g
Motor Connection
Contact Us
| Motor Specification | |
| Motor Type | External |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Rated Current(A) | 4.0 |
| Frame Size(mm) | 60x60 |
| Stack Length(mm) | 68 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 150 |
| Lead Screw Diameter(mm) | 9.525 |
| Lead Travel/Revolution(mm) | 2.54 |
| Lead Travel/Step(mm) | 0.0127 |
