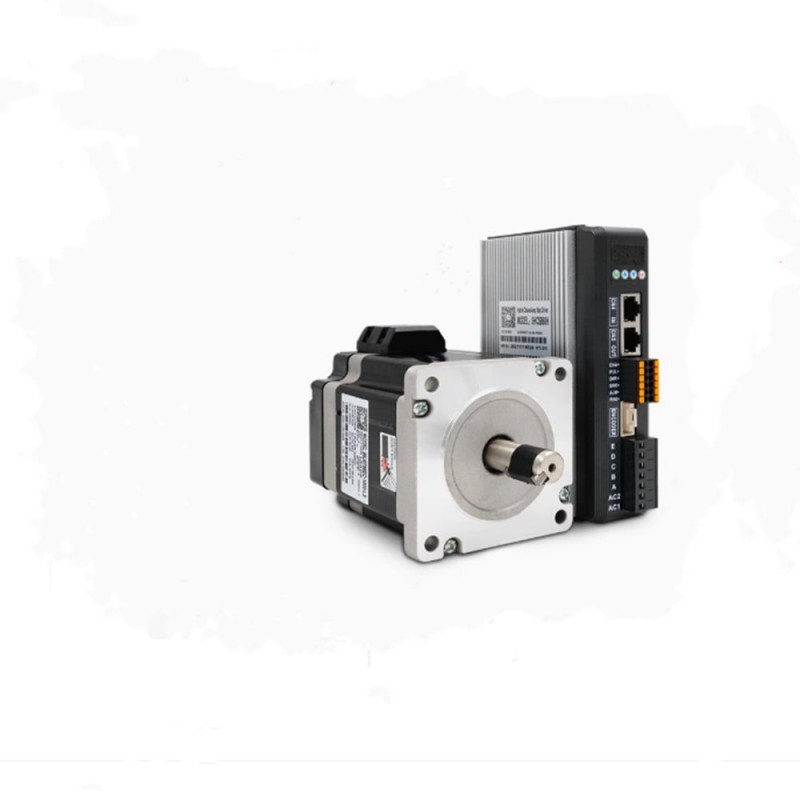

5 Phase NEMA 34 Closed-loop Stepper Motor 0.72deg 4Nm/586oz.in & 20-90VDC Closed-loop Drive
- Part Number: 1-5HCS868-86HF108
- Lead Time: In Stock
- Unit Price: $299.00
- Sales: 3
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
5 Phase NEMA 34 Closed-loop Stepper Motor 0.72deg 4Nm/586oz.in & 20-90VDC Closed-loop Drive
Motor Specification
- Step Angle: 0.72deg
- Holding Torque: 4.0Nm/568oz.in
- Rated Current: 1.4A
- Frame Size: 86x86mm
- Body Length: 118.07mm
- Shaft Diameter: Φ14mm
- Shaft Length: 38mm
- Keyway length: 25mm
Drive Specification
- Output Peak Current: 0-6.0A
- Input Voltage: +24-90VDC
Contact Us
| Motor Specification | |
| Phase Number | 5 |
| Step Angle(°) | 0.72 |
| Holding Torque(Nm) | 4.0 |
| Holding Torque(oz.in) | 568 |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 108.2 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 38 |
| Drive Specification | |
| Phase Number | 5 |
| Input Voltage(VDC) | 20-90 |
| Output Current(A) | 0-6 |
| Encoder Feedback | Yes |
| Control Mode | Pulse |
