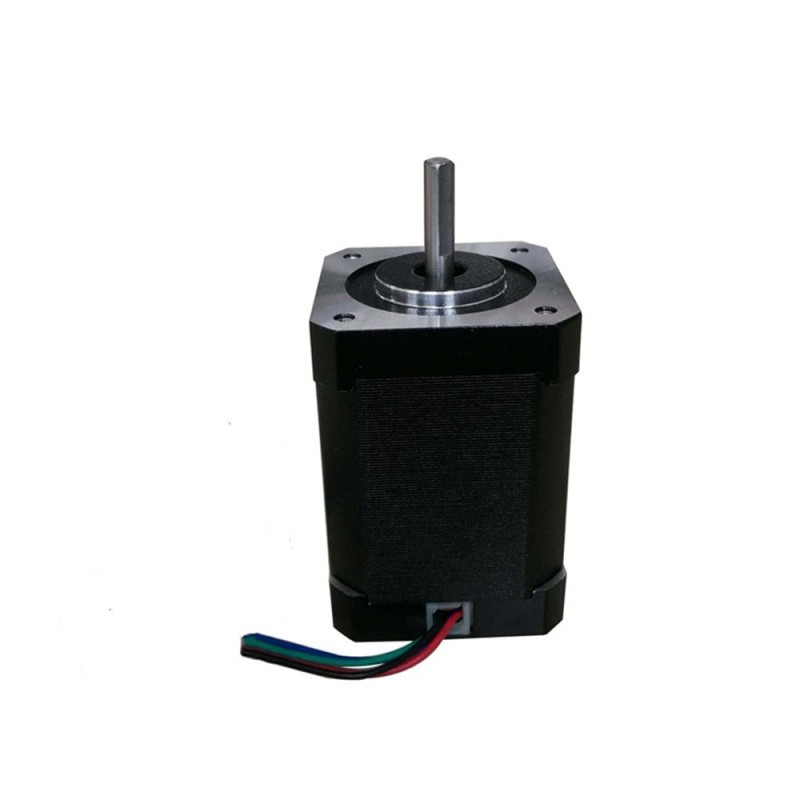

3D Printing Stepper Motor NEMA 17 2.1A 0.65Nm/92.3oz.in 42x60mm Φ5mm Shaft
- Part Number: 42AI60-2104S
- Lead Time: In Stock
- Unit Price: $15.00
- Sales: 17
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This is bipolar NEMA 17 stepper motor with step angle 1.8deg and szie 42x42x60mm. It has 4 wires, each phase drawing current 2.1A with holding torque 0.65Nm/92.3oz.in.
Electrical Specification
- Part Number: 42AI60-2104S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.65Nm/92.3oz.in
- Rated Current/phase: 2.1A
- Phase Resistance: 1.6ohms
- Inductance: 3.0mH
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: 42x42mm
- Body Length: 60mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.5kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.65 |
| Holding Torque(oz.in) | 92.3 |
| Rated Current(A) | 2.1 |
| Phase Resistance(ohm) | 1.6 |
| Phase Inductance(mH) | 3.0 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 60 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.5 |
