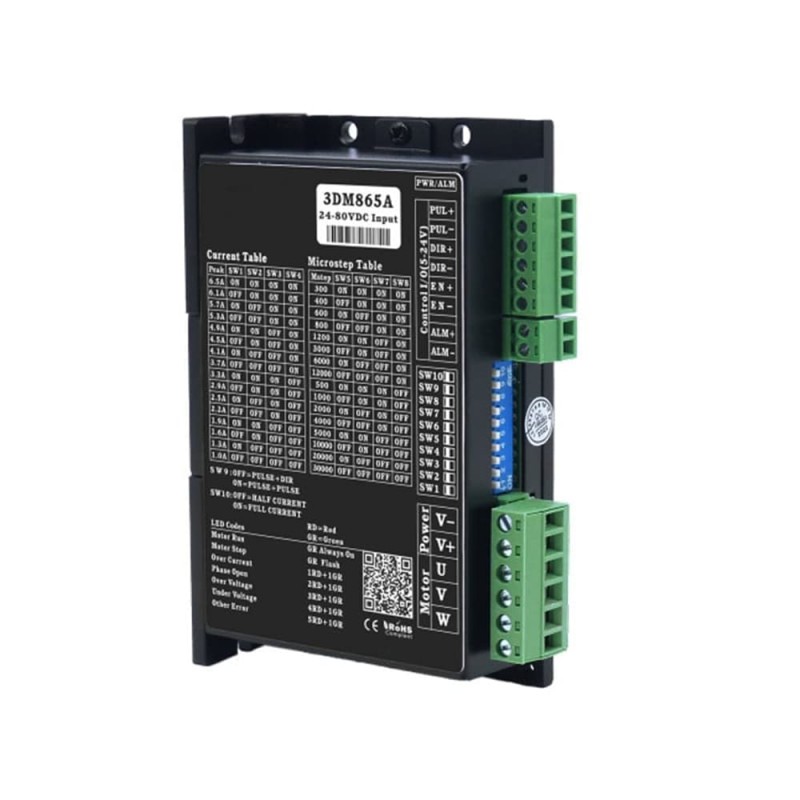

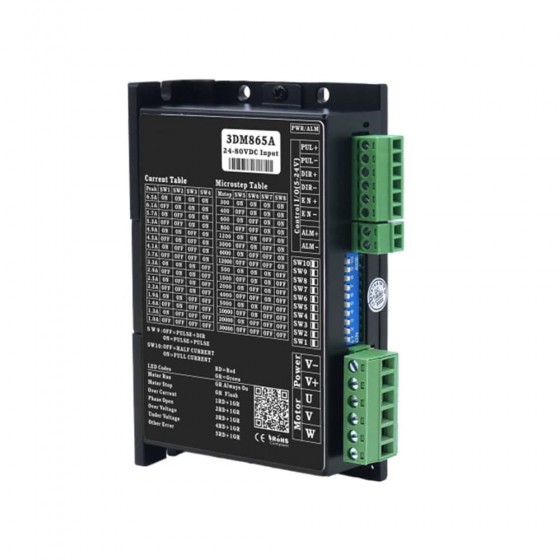

This drive can take 18-80VDC input voltage, and output 1.0-6.5A current. It is capable of driving 3 phase stepper motors of NEMA 17, 23, 24, 34.
key Features:
- Input voltage 18-80VDC
- Output peak current 1.0-6.5A
- Selectable Microstep: 16 Settings, Can be customized according to customer requirements
- Signal Input: compatible with 5-24V, no external series resistance required
- The Maximum Response Frequency 400KHz
- The Highest Speed 3000RPM
- External In Place And Alarm Output Port
- DIP Switch Setting The Single/ Double Pulse
- The Default Setting Is Pulse & Direction Control Mode
- DIP Switch Setting The Pulse Delay
- The Default Setting Is 40MS
- Cooling: Natural Cooling or Forced cooling
- Environment: Avoid dust, oil fog and corrosive gases
- Ambient Temperature: 0-50℃
- Humidity: 40%-90%RH
- Operating Temperature: 70℃Max
- Storage Temperature: -20-65℃
- Weight: Approx.262g
Contact Us
| Drive Specification | |
| Phase Number | 3 |
| Input Voltage(VDC) | 18-80 |
| Output Current(A) | 1.0-6.5 |
| Micro-step Resolutions | 300-30000 |
| Encoder Feedback | No |
| Control Mode | Pulse |

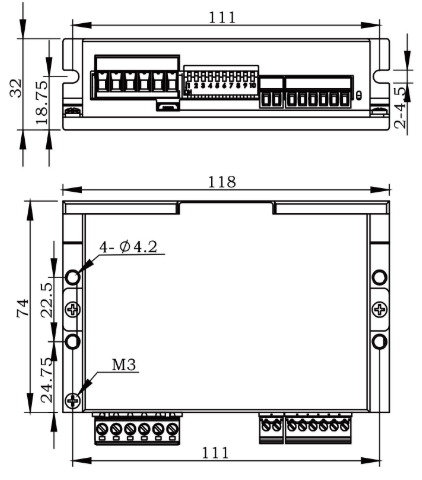

| Dimensions(mm) | 74x32x118 |
| Weight(KG) | 0.26 |
