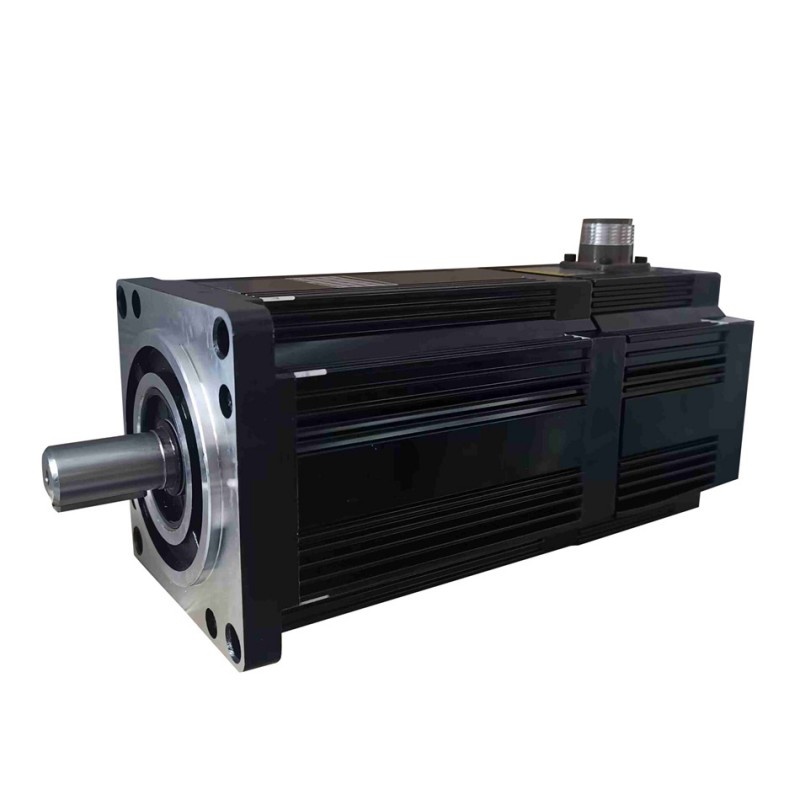

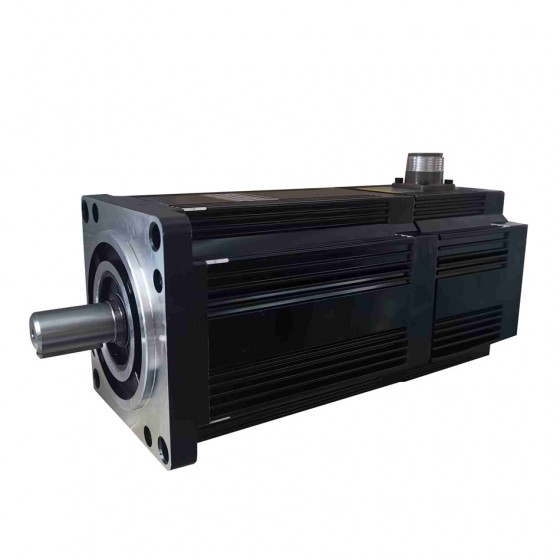

This large size 110mm NEMA 42 stepper motor with 1.2deg step angle has a strong holding torque 20Nm/2840oz.in with rated current 6.8A, integrated with a 24V electromagnetic brake. The brake will pause the motor shaft rotation in a very short time while the brake power is off. Frankhumotor's brake motors are absolutely an ideal solution for the machines that require frequently work and stop under vertical operation.

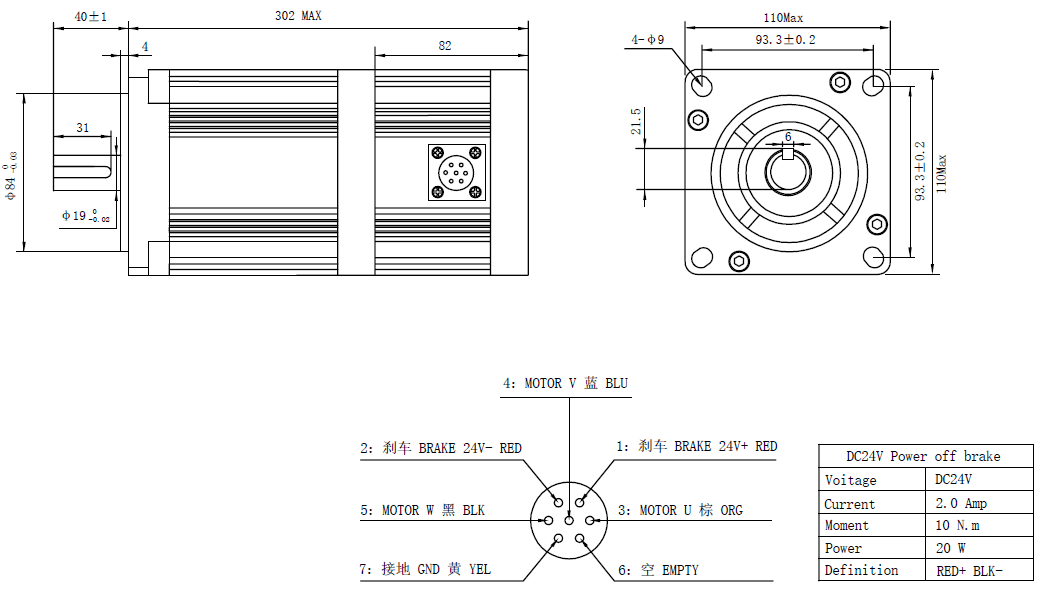

Motor Specification
- Part Number: 110HT302-6803P-B100
- Number of Phase: 3
- Step Angle: 1.2deg
- Holding Torque: 20Nm(2840oz.in)
- Rated Current/phase: 6.8A
- Driving Voltage: 110-220V
- Frame Size: 110x110mm
- Body Length: 302mm
- Shaft Diameter: Φ19mm
- Shaft Length: 40mm
- Keyway Length: 31mm
- Number of Leads: 3
- Lead Length: 3000mm
Brake Specification
- Brake Type: Electromagnetic
- Brake Voltage: 24VDC
- Brake Torque: 10Nm
- Number of Leads: 2
- Lead Length: 3000mm
Contact Us
| Motor Specification | |
| Phase Number | 3 |
| Step Angle(°) | 1.2 |
| Holding Torque(Nm) | 20 |
| Holding Torque(oz.in) | 2840 |
| Rated Current(A) | 6.8 |
| Frame Size(mm) | 110x110 |
| Body Length(mm) | 302 |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 40 |
| Driving Voltage(VAC) | 110-220 |
| Brake Specification | |
| Brake Type | Electromagnetic |
| Brake Voltage(VDC) | 24 |
| Brake Current(A) | 2 |
| Brake Torque(Nm) | 10 |
| Brake Power(W) | 20 |
