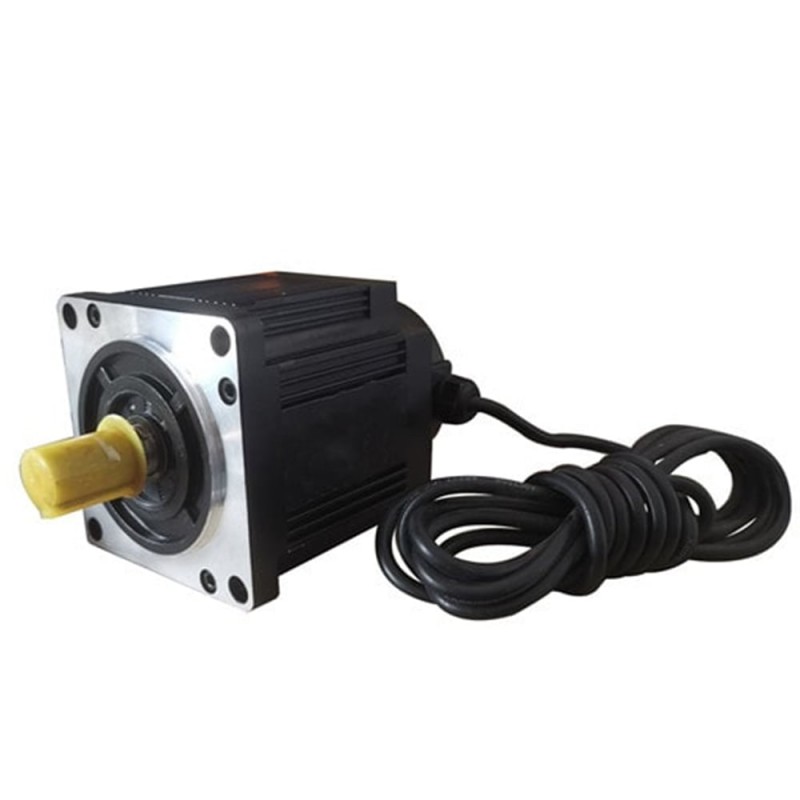

This large electric dc motor is a 3 phase NEMA 42 stepper motor with 1.2degree step angle/300 steps per revolution & size 110x139mm, which can generates a strong torque 8.0Nm/1136oz.in and 0-1500RPM.
Electrical Specification
- Part Number: 110HS138-4303S
- Phase Number: 3
- Step Angle: 1.2deg
- Holding Torque: 8.0Nm/1136oz.in
- Rated Current/phase: 4.3A
- Phase Resistance: 1.0ohms
- Inductance: 12.1mH
- Driving Voltage: 110-220VAC

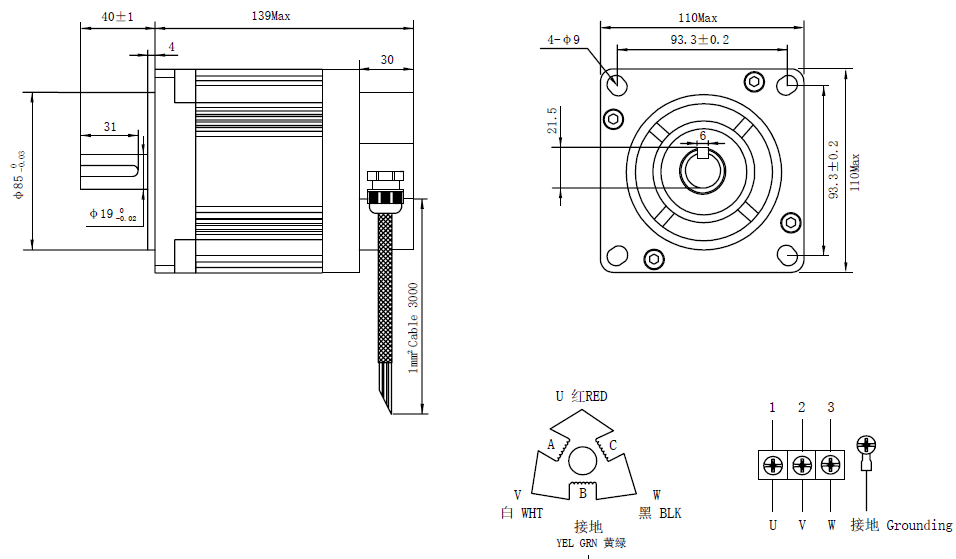

Physical Specification
- Frame Size: 110x110mm
- Body Length: 139mm
- Shaft Diameter: Φ19mm
- Shaft Length: 40mm
- Keyway Length: 31mm
- No. of Leads: 3
- Lead Length: 3000mm
- Weight: 7.8kg
Contact Us
| Electrical Specification | |
| Phase Number | 3 |
| Step Angle(°) | 1.2 |
| Holding Torque(Nm) | 8.0 |
| Holding Torque(oz.in) | 1136 |
| Rated Current(A) | 4.3 |
| Phase Resistance(ohm) | 1.0 |
| Phase Inductance(mH) | 12.0 |
| Driving Voltage(VAC) | 110-220 |
| Physical Specification | |
| Frame Size(mm) | 110x110 |
| Body Length(mm) | 139 |
| Shaft Type | Keyway |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 40 |
| No. of Leads | 3 |
| Lead Length(mm) | 3000 |
| Weight(KG) | 7.8 |
